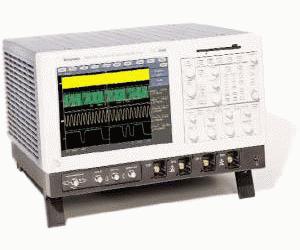

The TDS7254 oscilloscope is a highperformance solution for verification, debug and characterization of sophisticated electronic designs. It features exceptional signal acquisition performance, operational simplicity and open connectivity to the design environment.

• Jitter Measurements to 1.5 psRMS
• Graphical User Interface
• Control via Classic Direct Controls, Touch-sensitive Color Display or Mouse Navigation
• Open Microsoft Windows® Environment
• Built-in Networking
• Vertical System Input Channels – 4.
• Analog Bandwidth (–3 dB) – 2.5 GHz.
• Calculated Rise Time – 160 ps typical.
• Input Coupling – DC, Gnd.
• Input Impedance – 50 Ω ±2.5%.
• Input Sensitivity – 2 mV/div to 1 V/div.
• Real-time Sample Rates – 1/2/3-4 Channels: 20/10/5 GS/s.
• Max Record Length per Channel –Standard: 400 k (1 ch), 200 k (2 ch), 100 k (4 ch).
• Maximum Waveform Capture Rate – 400,000 wfms/sec.
