Showing Results for Keysight Technologies (Agilent HP) 1743A

Here you will find a large selection of new and used Keysight Technologies (Agilent HP) 1743A listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings by price. You also have the option of showing only ads that have been posted in the last 24 hours.

Keysight Technologies (Agilent HP) 1743A (Delta Time Interval Oscilloscopes) Main Features and Specifications

Product Specs

  • Bandwidth 100 MHz
  • Channels 2
  • Vertical Sensitivity Low Range [mV/div] 5
  • Vertical Sensitivity High Range [V/div] 20
  • Status Discontinued

See also

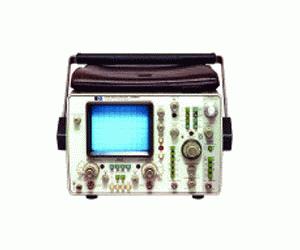

The Agilent HP 1743A 100MHz Delta Time Interval Oscilloscope is a dual-channel, powerful oscilloscope with a great Delta-time capability. Delta time is a function that you use to place markers at selected places then the scope measures the difference in time. It can do this since it has a 100MHz counter BUILT-IN. The accuracy is really good because it is crystal-controlled. Read the time difference on a bright red LED display that does not interfere with the view of your signal. Now, here is the powerful part. It measures the time difference on channel A alone, B alone, or between A AND B, or even between either channel and the trigger view. Obviously, it has trigger view. It has selectable input impedance. This is so that you can choose 50 ½ to match the output impedance of an accurate standard. You could also choose 1 M½ to avoid interfering with the operation of the circuitry that you''''re testing. The CRT is a large 9.5 x 12 cm.

  • Sweep ranges from 50 nS to 2 S
  • Sensitivity of 5 mV to 20 V/div with a basic accuracy of ±2%
  • Display modes are Main timebase, Æ-Time, Main Intensified, Mixed, Delayed timebase, and Mag X10
  • Channels can be displayed as A, B, A versus B (horizontal), ALT, CHOP, ADD, Trigger View (vertical), and Third-Channel Trigger View
