Here you will find a large selection of new and used Keysight Technologies (Agilent HP) 86100D listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $28000 to $13270 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

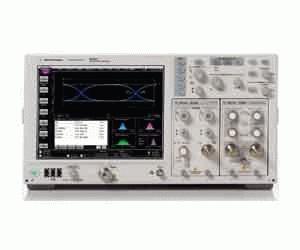

Keysight Technologies (Agilent HP) 86100D (Infiniium Wide-Bandwidth Oscilloscope Mainframe) Main Features and Specifications

Product Specs

  • Sample Rate 40 GSa/sec
  • Memory Depth 16 to 16384 samples record length
  • Status -
  • Launch Date Jun-2010

The 86100D DCA-X has been engineered for unmatched accuracy, insight, and ease-of-use. The DCA-X provides engineers with the tools needed to characterize their high-speed digital designs easily and accurately.

The DCA-X mainframe platform allows engineers to make next-generation measurements that include integrated de-embedding capability. At the same time, the DCA-X is 100 percent backwards compatible with all previous DCA modules and completely code compatible with the 86100C.

The high analog bandwidth, low noise, and low jitter measurements offered by the DCA helps engineers see the true performance of their designs on signals from 50 Mb/s to more than 40 Gb/s.

The modular DCA platform can be configured for optical, electrical, TDR/TDT, and S-parameter measurement capability.

  • Scope Mode yields the most accurate waveform measurements
  • Eye/Mask Mode provides fast and accurate compliance testing of transceivers
  • TDR/TDT Mode for precision impedance measurements with S-Parameter capability
  • Jitter and Amplitude Mode for comprehensive analysis of signal characteristics
  • Integrated de-embedding, embedding, and equalization capability
  • Jitter Spectrum and Phase Locked Loop (PLL) Analysis
  • Jitter analysis on long patterns such as PRBS31
  • Custom measurements and analysis using The MathWorks MATLAB software
  • Modular platform supports up to 16 parallel channels
  • Graphical signal processing
  • Dual user interfaces (FlexDCA, a new customizable vector-based user interface for scope, eye and jitter measurements, and DCA-J, the "classic" user interface)
  • Up to 64 simultaneous measurements
  • New measurements, including data-dependent pulse-width shrinkage (DDPWS), uncorrelated jitter (UJ), pre- and de-emphasis measurements and more
  • Vertical gain and offset controls for all channels and functions
  • User-defined multipurpose button
  • User-defined analog control knob
  • Fast CPU
  • Optimized algorithms designed for manufacturing test
  • Modular – buy only what you need today knowing you can upgrade later
  • Protect your investment - the 86100D is 100% compatible with all DCA modules

Get Price Quotes

Keysight 86100D
  • $22,375
Agilent 86100D STR/GPI
  • $28,000
    • In Stock
