Showing Results for Fluke 190-202

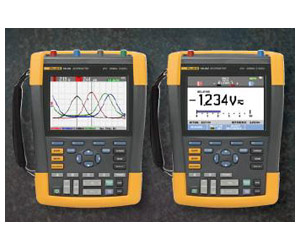

The Fluke 190-202 is a 200 MHz, 2 channel color ScopeMeter with DMM/Ext input.

As the first two and four-channel portable scopes safety rated CAT III 1000V / CAT IV 600V, the new Fluke ScopeMeter 190 Series II combines an unprecedented level of performance, ruggedness, and portability. You can choose from 60 MHz, 100MHz or 200MHz bandwidth models, both with real-time sampling rates up to 2.5 GS/s and 400 ps resolution to capture noise and other disturbances. Both models feature deep memory—up to 10,000 samples per channel— so you can examine very small parts of the waveform in detail. And both are IP-51 rated to withstand dust, drips, humidity, and wide temperature variations. Now plant maintenance engineers can take a 2- or 4-channel scope into the harsh world of industrial electronics.

The new 190 Series II can tackle just about any troubleshooting task. The models include a multimeter, TrendPlot™ and ScopeRecord™ roll paperless recorder modes and hands free operation with Connect-and-View™ triggering.

• Independently floating isolated inputs: Up to 1000 V CAT III/600 V CAT IV between inputs, references and ground
• Choose from 60 MHz, 100MHz or 200MHz bandwidth models
• Fast sampling rate, up to 2.5GS/s with up to 400 ps resolution
• Deep memory: 10,000 points per trace waveform capture (scope mode)
• Dedicated 5000 Count digital multimeter in 2 Channel models
• Quad meter measurements via scope BNC inputs in 4 channel models
• Connect-and-View continuous auto-trigger, single shot, pulse width, and video triggering
• ScopeRecord roll mode, capture waveform sample data for up to 48 hours
• TrendPlot, trend measurement readings for up to 22 days
• Advanced automatic measurements, power (Vpwm, VA, W, PF) and time (mAs, V/s, w/s)
• IP-51 rated for dust and drip proof to withstand harsh environments
• Frequency spectrum using FFT analysis
• Automatic capture and REPLAY of 100 screens
• Isolated USB ports for memory devices and PC connectivity
• Li-Ion battery for extended operating timespan
  • 190-X04, 4 Channel models up to 7 hour (BP291 included standard)
  • 190-XX2, 2 Channel models up to 4 hours (BP290 included standard) or up to 8 hour with optional BP291
  • Charge spare battery using optional external battery charger EBC290
  • Easy-access battery door to make it easy to swap batteries
• A handy slot to tether and lock down the oscilloscope while unattended using a standard Kensington® lock
• Compact and only 2.2 kg (4.8 pounds)

190-202 specifications:

• Bandwidth: 200 MHz
• Number of channels: 2 channels
• Real-time sample rate: 2.5 GS/s
• Inputs: 2 scope plus DMM input
• Timebase range: 2 ns - 4 s/div
• Input sensitivity: 2 mV-100 V/div
• Trigger types: Connect-and-View™, Free Run, Single Shot, Edge, Delay, Dual Slope, Video, Video Line, Selectable pulse width, N-Cycle
• Trigger Source: Any scope input channel, or external via DMM input
• Glitch capture: 8 ns
• Scope measurements
  • Cursor: 7
  • Automatic: 30
• Maximum record length
  • ScopeRecord mode: 30,000 pts
  • Scope mode: 10,000 pts per input
• Persistence: Digital persistence giving analog oscilloscope-like waveform decay
• Waveform Compare: Waveform reference with automatic Pass/Fail testing
• DMM specifications
  • Meter inputs (also used as External Trigger input for the Oscilloscope Mode): 4 mm banana inputs, fully isolated from scope inputs and from scope ground
  • Maximum resolution: 5000 counts
  • Measurements: Vdc, Vac rms, Vac+dc rms, Resistance, Continuity, Diode Test, Current (through clamp or shunt), Temperature ºC or ºF (using optional converter)
