Showing Results for Tektronix TDS3054

12 results found for Tektronix tds3054
Showing page 1 of about 1 pages total.
Here you will find a large selection of new and used Tektronix TDS3054 listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $2198 to $1598 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

Tektronix TDS3054 () Main Features and Specifications

Product Specs

  • Status Discontinued
  • Launch Date Jan-1999

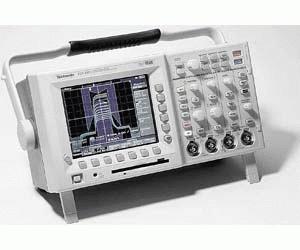

The TDS3000 series oscilloscopes are the lowest priced, most portable Digital Phosphor Oscilloscopes (DPOs). Now every design engineer and technician can take advantage of the tremendous benefits of DPOs. DPOs deliver a new level of insight that makes dealing with complex signals simple. DPOs display, store, and analyze, in real-time three dimensions of signal information: amplitude, time, and distribution of amplitude over time.

  • TDS3054: 500 MHz Bandwidth
  • Sample Rate: 5 GS/s
  • 4 Channels
  • Full VGA Color LCD
  • Built-in Floppy Disk Drive For Easy Storage and Documentation
  • 21 Automatic Measurements
  • Centronics Port Standard on all Models for Quick, Convenient Hardcopies
  • Maximum Record Length: 10K points
  • Range (/div): 1 ns - 10 s/div
  • 9-bit Vertical Resolution
  • Vertical Sensitivity (/div): 1 mV-10 V on all models
  • Multi-Language User Interface
  • QuickMenu User Interface Mode for Quick, Easy Operation
  • Optional Modules for RS-232, GPIB, LAN or VGA Communication Ports
  • Advanced Triggers, such as, Glitch, Width, and Logic Standard on 4 Channel Models
  • Telecommunications Mask Testing (TMT)
  • Fast Fourier Transform (FFT) for Frequency and Harmonic Analysis Standard on 4 Channel Models
  • Extended Video Application Module
  • Support for Active Probes, Differential Probes, and Current Probes that Provide Automatic Scaling and Units
