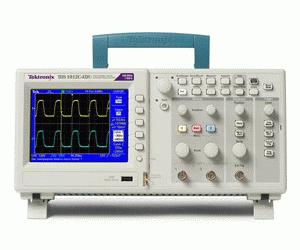

Showing Results for Tektronix TDS1002C-EDU

The TDS1000C-EDU Digital Oscilloscope Series is designed specifically to meet the needs of schools and universities. Packed with features and built-in tools, the TDS1000C-EDU is easy to learn and simple to operate – ideal for first-time oscilloscope users and students. Featuring the same user interface as other members of the Tektronix TDS Oscilloscope Family, your students will learn to operate the most popular oscilloscope platform in the world, with over 500,000 oscilloscopes in operation worldwide. To simplify integration with your existing curriculum, the TDS1000C-EDU also includes an Education Resource CD filled with tools to help your students master the use of an oscilloscope. The TDS1000C-EDU offers the tools and performance you need at a price you can afford.

• 100 MHz, 60 MHz, 40 MHz bandwidth models
• 2 channels
• External trigger input included on all models
• Up to 1 GS/s sample rate on all channels
• 2.5k point record length on all channels
• Bright 5.7 inch (144 mm) active TFT color display: See your waveform and measurement results at a distance, at an angle, or under dim lighting with the bright, active color display
• Digital real-time sampling: Accurately capture signals with at least 10X over-sampling on all channels, all the time, with Tektronix proprietary sampling technology
• Advanced triggers including pulse width trigger and line-selectable video trigger
• 16 automated measurements, and FFT analysis for simplified waveform analysis
• Autoset and signal auto-ranging
• Probe check wizard
• 11-language user interface and context-sensitive help
• Dedicated front-panel controls: Spend less time learning and more time on your task with easy-to-use front-panel controls
• USB 2.0 host port on the front panel for quick and easy data storage
• USB 2.0 device port on rear panel for easy connection to a PC or direct printing to a PictBridge®-compatible printer
• Small footprint and lightweight – Only 4.9 inches (124 mm) deep and 4.4 pounds (2 kg)
• 3-year warranty

TDS1002C-EDU characteristics:

• Bandwidth: 60 MHz
• Channels: 2
• Sample rate on each channel: 1.0 GS/s
• Record length: 2.5 kpoints at all time bases
• Vertical resolution: 8 bits
• Vertical sensitivity: 2 mV to 5 V/div
• Maximum input voltage: 300 Vrms Cat II; derated at 20 dB/decade above 100 kHz to 13 Vp-p AC at 3 MHz
• Position range: 2 mV to 200 mV/div +2 V; >200 mV to 5 V/div +50 V
• Bandwidth limit: 20 MHz
• Input coupling: AC, DC, GND
• Input impedance: 1 MΩ in parallel with 20 pF
• Time base range: 5 ns to 50 s/div
• 2 USB 2.0 ports included; GPIB optional
• Nonvolatile storage
  • Reference waveform display: (2) 2.5 kpoint reference waveforms
  • Waveform staorage without USB flash drive: (2) 2.5 kpoint
  • Waveform storage with USB flash drive: 96 or more reference waveforms per 8 MB
  • Setups without USB flash drive: 10 front-panel setups
  • Setups with USB flash drive: 4000 ormore front-panel setups per 8 MB
  • Screen images with USB flash drive: 128 or more screen images per 8 MB, depending on file format
  • Save All with USB flash drive: 12 or more Save All operations per 8 MB
• Acquisition modes
  • Peak Detect: High-frequency and random glitch capture. Captures glitches as narrow as 12 ns (typical) using acquisition hardware at all time-base settings from 5 μs/div to 50 s/div
  • Sample: Sample data only
  • Average: Waveform averaged, selectable: 4, 16, 64, 128
  • Single Sequence: Use the Single Sequence button to capture a single triggered acquisition sequence at a time
  • Roll Mode: At acquisition time base settings of >100 ms/div
• Trigger modes: Auto, Normal, Single Sequence
• Trigger types
  • Edge (Rising/Falling): Conventional level-driven trigger. Positive or negative slope on any channel. Coupling selections: AC, DC, Noise Reject, HF Reject, LF Reject
  • Video: Trigger on all lines or individual lines, odd/even or all fields from composite video, or broadcast standards (NTSC, PAL, SECAM)
  • Pulse Width (or Glitch): Trigger on a pulse width less than, greater than, equal to, or not equal to, a selectable time limit ranging from 33 ns to 10 s
• Trigger source: CH1, CH2, Ext, Ext/5, AC line
• Automatic waveform measurements: Period, Frequency, +Width, -Width, Rise time, Fall time, Max, Min, Peak-to-peak, Mean, Cycle RMS, RMS, Cursor RMS, Duty cycle, Phase, Delay
• Waveform math
  • Operators: Add, Subtract, Multiply, FFT
  • FFT: Windows, Hanning, Flat Top, Rectangular, 2048 sample points
  • Sources: CH1 - CH2, CH2 - CH1, CH1 + CH2, CH1 x CH2
• Autoset Menu: Single-button, automatic setup of all channels for vertical, horizontal, and trigger systems, with undo Autoset
  • Square wave: Single-cycle, Multi-cycle, Rising or Falling edge
  • Sine wave: Single-cycle, Multi-cycle, FFT spectrum
  • Video (NTSC, PAL, SECAM): Field—All, Odd, or Even; Line—All or selectable line number
• Autorange: Automatically adjust vertical and/or horizontal oscilloscope settings when probe is moved from point to point, or when the signal displays large changes
  • Display: QVGA color TFT
  • Interpolation: Sin (x)/x
  • Display types: Dots, vectors
  • Persistence: Off, 1 s, 2 s, 5 s, infinite
  • Format: YT and XY
