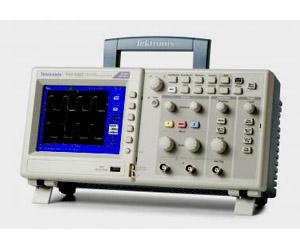

The TBS1000 Digital Storage Oscilloscope Series provides you with affordable performance in a compact design. Packed with standard features – including USB connectivity, 16 automated measurements, limit testing, data logging, and context-sensitive help – the TBS1000 Series oscilloscopes help you get more done in less time.

With up to 150 MHz bandwidth and 1 GS/s maximum sample rate, no other digital storage oscilloscope offers as much bandwidth and sample rate for the price. Tektronix proprietary sampling technology provides real-time sampling with the stated sampling rate on all channels, all the time, to accurately capture your signals. Sampling performance is not reduced when using multiple channels.

The TBS1000 Digital Oscilloscope Series is especially well suited to meet the needs of today’s schools and universities. Packed with features and built-in tools, the TBS1000 is easy to learn and simple to operate – ideal for first-time oscilloscope users and students. Featuring the same user interface as the Tektronix TDS Oscilloscope Family, your students will learn to operate the world’s most popular oscilloscope platform, with over 500,000 oscilloscopes in operation worldwide.

To simplify integration with your existing curriculum, the TBS1000 also includes an Education Resource CD filled with tools to help your students master the use of an oscilloscope. The TBS1000 offers the tools and performance you need at a price you can afford.

• 150 MHz, 100 MHz, 60 MHz, 40 MHz, and 25 MHz Bandwidth Models
• 2-channel Models
• Up to 1 GS/s Sample Rate on All Channels
• 2.5k point Record Length on All Channels
• Advanced Triggers including Pulse Width Trigger and Line-selectable Video Trigger
• 16 Automated Measurements, and FFT Analysis for Simplified Waveform Analysis
• Built-in Waveform Limit Testing
• Automated, Extended Data Logging Feature
• Autoset and Signal Auto-ranging
• Built-in Context-sensitive Help
• Probe Check Wizard
• Multiple-language User Interface
• 5.7 inch (144 mm) Active TFT Color Display
• USB 2.0 Host Port on the Front Panel for Quick and Easy Data Storage
• USB 2.0 Device Port on Rear Panel for Easy Connection to a PC or Direct Printing to a PictBridge®-compatible Printer
• Includes Tektronix OpenChoice® Software for Connecting Your Bench
• Small Footprint and Lightweight – Only 4.9 inches (124 mm) Deep and 4.4 pounds (2 kg)
• 5-Year Warranty

TBS1062 specifications:

• Bandwidth: 60 MHz
• Channels: 2
• Sample rate on each channel: 1 GS/s
• Record length on each channel: 2.5 kpoints at all time bases
• Vertical resolution: 8 bits
• Vertical sensitivity: 2 mV to 5 V/div with calibrated fine adjustment
• Maximum input voltage: 300 Vrms CAT II; derated at 20 dB/decade above 100 kHz to 13 Vp-p AC at 3 MHz
• Bandwidth limit: 20 MHz
• Input coupling: AC, DC, GND
• Imput impedance: 1 MΩ in parallel with 20 pF
• Time base range: 5 ns to 50 s/div
• Acquisition modes: Peak Detect, Sample, Average, Single Sequence, Roll
• Trigger modes: Auto, Normal, Single Sequence
• Trigger types, Edge (Rising/Falling), Video, Pulse width (or glitch)
• Trigger source: CH1, CH2, Ext, Ext/5, AC Line
• Automatic waveform measurements: Period, Frequency, +Width, –Width, Rise Time, Fall Time, Max, Min, Peak-to-Peak, Mean, RMS, Cycle RMS, Cursor RMS, Duty Cycle, Phase, Delay
• Waveform math: Add, Subtract, Multiply, FFT (Windows: Hanning, Flat Top, Rectangular); 2048 sample points
• Cursor (Amplitude, Time) measurements: ΔT, 1/ΔT, ΔV
• Display (QVGA LCD): Active Color TFT; Sin(x)/x interpolation; Dots, vectors; Persistance: Off, 1 s, 2 s, 5 s, infinite; YT and XY format
• Available languages: English, French, German, Italian, Japanese, Korean, Portuguese, Russian, Simplified Chinese, Spanish, Traditional Chinese
• USB ports
  • USB host port on front panel supports USB flash drives
  • USB device port on back of instrument supports connection to PC and all PictBridge-compatible printers
• Optional GPIB
