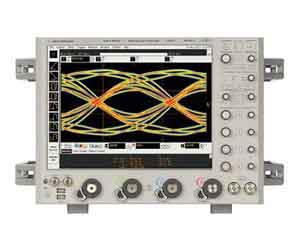

The Infiniium 90000 Q-Series oscilloscopes with industry-leading, real-time bandwidth of 63 GHz on two channels and 33 GHz on four channels, includes 10 four-channel models ranging from 20 GHz to 63 GHz, all of which are bandwidth upgradeable. These scopes deliver the lowest noise and have the lowest jitter measurement floor in the oscilloscope industry, ensuring superior measurement accuracy.

At its maximum bandwidth the Q-Series breaks the 60-GHz barrier, with a -3 dB point of 63 GHz. The 33-GHz model allows engineers to simultaneously trigger on and capture signals on all four channels with no compromise. These two specifications allow the oscilloscopes to make measurements on devices designed to conform to emerging standards.

Key capabilities:

• Direct digitization of M-band signals (60 GHz to 100 GHz)
• Capture of the third harmonic on 28-, 32- and 40-Gbps digital signals
• Analysis of IEEE 802.3ba 40/100/400-GbE and Optical Internetworking Forum CEI 3.0 signals
• Measurement of up to four differential channels in a single acquisition for unraveling difficult cross-talk problems
• Direct measurement of voltage swings larger than 1 V when high-bandwidth and general-purpose measurements need to be made with the same instrument

With the 90000 Q-Series, Agilent improves upon the use of custom integrated circuits and multichip module packaging with an exclusive new technology called RealEdge. RealEdge comprises a combination of new architectures, next-generation microcircuits and thin-film components, and advanced application of the Agilent indium phosphide semiconductor process. This new technology enables high-frequency capability while maintaining the lowest noise and jitter measurement floor (75 fs) in the industry.

DSOX96204Q features and specifications:

• 63 GHz bandwidth on 2 channels / 33 GHz bandwidth on 4 channels
• 160 GSa/s sample rate on 2 channels / 80 GSa/s sample rate on 4 channels
• Deep memory with up to 2 Gpts memory with 40 Mpts per channel standard (on two channels)
• Low intrinsic jitter and noise floor for increased measurement accuracy
  • Rise time (<7 ps)
  • Noise floor (4.4 mV at 50 mV/div, 63 GHz)
  • Jitter measurement floor (~75 femtoseconds)
• Industry’s first and only 30 GHz oscilloscope probing system
  • Fully customized probe amplifier S-parameter characteristics provide accurate probe correction for each individual probe amplifier
  • Bandwidth-upgradable probes for evolving probing needs
  • PrecisionProbe for quickly characterizing any input to your oscilloscope
• Industry’s most comprehensive application-specific measurement software
• Broad range of jitter, trigger, analysis and protocol tools (featuring PrecisionProbe)
• Pre-built compliance testing software based on the expertise of our engineers on the standards committees, with the added flexibility of user-defined application add-on capabilities
• Support for emerging technologies including SAS 6G, SATA 6G, SAS 12G, GDDR5, PCIe gen 3, DisplayPort 1.2, QPI, and 10GBaseKR
• MATLAB® software available directly from Agilent for making your own custom measurement and analysis routines, user-defined filters, or instrument applications
• Vertical
  • Analog bandwidth, -3dB (typical): 62 GHz
  • Analog bandwidth (typical): 63 GHz
  • 2-channel sample rate: 160 GSa/s
  • 4-channel sample rate: 80 GSa/s
  • Rise time/fall time, 10 - 90%: 7 ps
  • Rise time/fall time, 20 - 80%: 5 ps
  • Vertical resolution: 8 bits, ≥12 bits with averaging
  • Maximum input voltage: ±5 V
  • Dynamic range: ±4 div from center screen
• Horizontal
  • Main timebase range: 2 ps/div to 20 s/div real-time (RealEdge is 1 ps/div to 20 s/div real-time)
  • Main timebase delay range: 200 s to -200 s real-time
  • Zoom timebase range: 1 ps/div to current main time scale setting
  • Channel deskew: ±1 ms range, 10 fs resolution
• Acquisition
  • Maximum real-time sample rate: 160 GSa/s (2 channels), 80 GSa/s (4 channels)
  • Memory depth per channel: Standard on 2 channels 40 Mpts, up to 2 Gpts with Option 02G
  • Sampling modes: Real-time, Real-time with averaging, Real-time with peak detect, Real-time with hi resolution, Guassian magnitude, linear phase, Roll mode, Segmented memory, Filters Sin(x)/x Interpolation
• Hardware triggers
  • Edge trigger bandwidth: >20 GHz
  • Minimum pulse width trigger: Hardware 250 ps, Software (InfiniiScan) 40 ps
  • Internal level range: ± 4 div from center screen or ± 4 Volts, whichever is smaller
  • Auxilliary level range: ± 5 V, also limit input signal to ± 5 V
  • Sweep modes: Auto, triggered, single
  • Trigger sources: Channel 1, Channel 2, Channel 3, Channel 4, aux, and line
  • Trigger modes: Edge, Edge transition, Edge then edge (time), Edge then edge (event), Glitch, Pulse width, Runt, Timeout, Pattern/pulse range, State, Window, Video, Trigger sequences
  • Trigger holdoff range: 100 ns to 10 s
• Display: 15.4-inch color XGA TFT-LCD with touch screen, 1024 pixels horizontally x 768 pixels vertically; One, two or four waveform grids, each with 8 bit vertical resolution
• I/O ports: RS-232 (serial), Parallel, PS/2, USB 2.0 hi-speed (host), USB 2.0 hi-speed (device), Dual-monitor video output, Auxiliary output, Trigger output, Time base reference output
