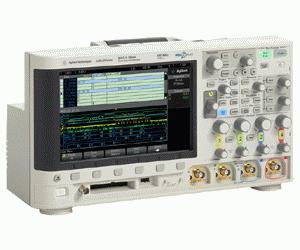

The Agilent InfiniiVision DSOX3014A is engineered to deliver value, functionality, and flexibility at prices that fit into your existing budgets. This 4-channel model in the InfiniiVision 3000 X-Series, with 1,000,000 waveforms/ sec, gives you superior performance and functionality today, and the ability to upgrade capabilities, such as serial measurement applications in the future.

• Largest screen in its class: 8.5-inch WVGA display
• Fastest update rate of 1,000,000 waveforms per second
• Deepest memory: 4 Mpts (Optional, 2 Mpts interleaved standard)
• Best-in-class oscilloscope
• Integrated logic timing analyzer (MSO, upgradable with DSOX3MSO)
• Built-in 20-MHz function generator: WaveGen
• Hardware-based protocol analyzer
• Localized GUI and help
• 33 automated measurements, nine parametric triggers, six serial protocol triggers, as well as seven waveform math functions, including FFT
• Autoscale button for automatically setting the vertical, horizontal, and trigger controls for optimal viewing (can be disabled or enabled)
• Upgradability: add bandwidth, digital channels, or WaveGen after purchase
• Optional serial protocol analysis applications including: I²C, SPI, RS232, UART, CAN, LIN, and I²S
• Segmented memory: Segmented memory acquisition lets you selectively capture and store important segments of signals without capturing unimportant signal idle/deadtime
• Mask Testing: Hardware-based mask testing can perform up to 280,000 tests per second
• Reference waveforms: Store up to two waveforms in the non-volatile reference waveform memory locations, for comparing with live waveforms, and performing post analysis
• Connectivity: Operate the scope from a PC and save and recall waveforms as well as set-up files via LAN. Built-in USB host (one front, one rear), and USB device ports,  an optional LAN/VGA module, and an optional GPIB module. Only one module can be used at a time

Performance characteristics of the DSOX3014A:

• Analog bandwidth (-3dB ): 100 MHz
• Analog input channels: 4
• Calculated rise time: ≤ 3.5 ns
• Time base range: 5 ns/div to 50 s/div

Performance characteristics of all 3000 X-Series models:

• Hardware bandwidth limits: 20 MHz selectable
• Input coupling: AC, DC, GND
• Input impedance: Selectable 1 MΩ ± 1%; 50 Ω ± 1.5%
• Input sensitivity range: 2 mV/div to 5 V/div
• Sample rate on each channel: 2 GSa/s per channel; 4 GSa/s half-channel interleaved
• Maximum record length: Standard, 1 Mpt per channel, 2 Mpts half-channel interleaved; With option, 2 Mpts per channel, 4 Mpts half-channel interleaved
• Maximum duration of time captured at highest sample rate (all channels): 1 ms
• Display: 8.5-inch WVGA with 64 levels of intensity grading
• Waveform update rate (max): 1,000,000 waveforms/s
• Vertical resolution: 8 bits
• Horizontal resolution: 2.5 ps
• Time base delay time range
  • Pre-trigger – Greater of 1 screen width or 250 μs
  • Post-trigger – 1 s to 500 s
• Channel-to-channel deskew range: ± 100 ns
• Channel-to-channel isolation: > 100:1 from DC to maximum specified bandwidth of each model (measured with same V/div and coupling on channels)
• Offset range: ±2 V (2 mV/div to 200 mV/div), ±50 V (> 200 mV/div to 5 V/div)
• Acquisition modes
  • Normal
  • Peak detect: Capture glitch as narrow as 250 ps at all timebase settings
  • Averaging: Select from 2, 4, 8, 16, 64, up to 65,536
  • High resolution mode: 12 bits of resolution when ≥ 10 μs/div at 4 GSa/s or ≥20 μs/div at 2 GSa/s
  • Segmented (optional): Re-arm time= 1 μs (minimum time between trigger events)
• Trigger modes
  • Normal (triggered): requires trigger event for scope to trigger
  • Auto: triggers automatically in absence of trigger event
  • Single: triggers only once on a trigger event, press [Single] again for scope to find another trigger event, or press [Run] to trigger continuously in either Auto or Normal mode
  • Force: front panel button that forces a trigger
•  Trigger level range
  • Any channel: ± 6 div from center screen
  • External: ± 8 V
• Waveform automatic measurements (Measurements continuously updated with statistics. Cursors track last selected measurement. Select up to four measurements from the list.)
  • Voltage: peak-to-peak, maximum, minimum, amplitude, top, base, overshoot, pre-shoot, average- N cycles, average- full screen, DC RMS- N cycles, DC RMS- full screen, AC RMS- N cycles, AC RMS- full screen (standard deviation), ratio (RMS1/RMS2)
  • Time: period, frequency, counter, + width, - width, burst width, duty cycle, rise time, fall time, delay, phase, X at min Y, X at Max Y
  • Count: positive pulse count, negative pulse count, rising edge count, falling edge count
  • Mixed: area- N cycles, area- full screen
• Input/output ports
  • USB 2.0 hi-speed host port: Two USB 2.0 hi-speed host ports, front and rear panel; Supports memory devices and printers
  • USB 2.0 hi-speed device port: One USB 2.0 hi-speed device port on rear panel
  • LAN port: 10/100Base-T (requires DSOXLAN module)
  • Video out port: Connect oscilloscope display to an external monitor or projector (requires DSOXLAN module)
  • GPIB port: To allow easy migration into existing test systems (requires DSOXGPIB)
  • Probe compensator output: Square wave: 2.5 Vpp, 1 kHz
  • Kensington style lock: Rear-panel security slot connects to standard Kensington-style lock
  • WaveGen out: Front-Panel BNC Connector
