Showing Results for Tektronix TDS794D

16 results found for Tektronix tds794d
Showing page 1 of about 1 pages total.
Here you will find a large selection of new and used Tektronix TDS794D listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $2915 to $2498 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

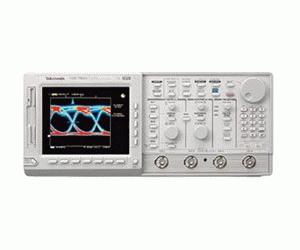

Tektronix TDS794D () Main Features and Specifications

Product Specs

  • Bandwidth 2 GHz
  • Channels 4
  • Sample Rate 4 GSa/sec
  • Memory Depth 8M Points
  • Status Discontinued

The TDS 500D/700D oscilloscopes are the first in the TDS family of Digital Phosphor Oscilloscopes (DPOs) designed to keep pace with current and evolving needs in advanced electronic design and debug. DPOs deliver a new level of insight that makes dealing with complex signals elementary – a new level of insight that must be seen to be believed.

DPOs capture, store, display, and analyze, in real-time, three dimensions of signal information: amplitude, time, and distribution of amplitude over time. The benefit of this new third dimension of information is an interpretation of the signal dynamics, including instantaneous changes and the frequency of occurrence displayed in the form of quantitative intensity information.

  • 2 GHz, 1 GHz, and 500 MHz Bandwidths
  • Sample Rates to 4 GS/s
  • DPO Display Density of up to 100M points/sec
  • 2 or 4 Channels
  • 1% Vertical Accuracy
  • 8-Bit Vertical Resolution, over 11-Bits with Averaging, and Over 13-Bits with Hi-res
  • 1 ns Peak Detect
  • 1 mV to 10 V/div Sensitivity
  • Up to 1 GHz Differential Measurements
  • Channel Deskew
  • Record Lengths to 8M Points
  • Floppy Disk Storage
  • Iomega Zip™ Drive Compatible Advanced Triggering
  • 29 Automatic Measurements and Measurement Statistics
  • FFT and Advanced Math
  • Histograms on DPO and Normal Waveform Acquisitions
  • Histogram Statistics
  • Limit Test
  • FastFrame™ Time Stamp
  • Communication Signal Analysis Including Mask Testing and SONET/SDH and Fibre Channel Optical Reference Receivers
  • Full GPIB Programmability
