Showing Results for Tektronix TDS540

8 results found for Tektronix tds540

Showing page 1 of about 1 pages total.

Items from the last Sort by

Here you will find a large selection of new and used Tektronix TDS540 listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $1838 to $1450 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

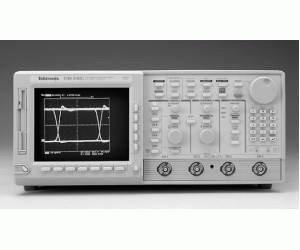

Tektronix TDS540 () Main Features and Specifications

Bandwidth 500 MHz
Number of Channels 4 ch
Simultaneous Channels 4 ch
Simultaneous Maximum Sampling Rate/ch 250 MSa/s
One ch. only max. sampling rate 1 GSa/s
Max. Record Length 15000 pt/sec
Min. Vertical Sensitivity 1 mV/div
Maximum Vertical Sensitivity 10 V/div
Number of Bits 8 bits
Input Impedance 1 MOhm
Input Impedance (alternate) 50 Ohm
Input Coupling AC,DC,GND
Maximum Input Voltage 400 Vrms
Main time base - lowest 500 ps/div
Main time base - highest 10 s/div
Timebase accuracy .005 %
Trigger Source Internal
Trigger Modes Auto,Edge,Logic,Normal,Pulse,Single
Minimum Glitch Trigger 2 ns
Display Size 17.78 cm
Display modes Dot,Persistence,Vector
Display Update Rate 150 wv/sec

Get Price Quotes
