Showing Results for Tektronix TDS320

6 results found for Tektronix tds320
Showing page 1 of about 1 pages total.
Here you will find a large selection of new and used Tektronix TDS320 listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $1099 to $295 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

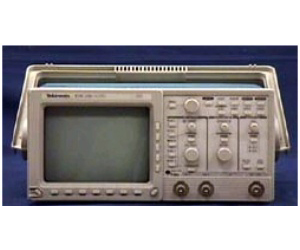

Tektronix TDS320 () Main Features and Specifications

Product Specs

  • Bandwidth 100 MHz
  • Channels 2
  • Sample Rate 500 MSa/sec
  • Memory Depth 1000 pt/sec
  • Status Discontinued
Signal Acquisition System * Bandwidth: 100 MHz * Sample Rate: 500 MS/s on each channel * Channels: two identical channels, each with invert function * Sensitivity: 2 mV to 10 V/div * Vertical Resolution: 8 bits (256 levels over 10.24 vertical divisions) Time Base System (Main and Delayed) * Time/Division Range: 5 ns - 5 s/div * Record Length: 1000 sample points per channel Triggering System (Main Only) * Triggering Types: Edge, Video Automatic Measurements Option 14 (I/O Interface): Computer Interface and Hardcopy Capability * GPIB (IEEE-488.2) Programmability * RS-232 Interface Programmability * Video Output * Hardcopy Port - Centronics-type parallel or RS-232 * Graphics Interface File Formats - Interleaf (.img), TIFF, PCX (PC Paintbrush), BMP (Microsoft Windows), and Encapsulated Postscript (EPS) * Printer Formats - ThinkJet, DeskJet, LaserJet, Epson (9 & 24 Pin), Seiko DPU 411/II, DPU 412. DC power provided for Seiko printers
