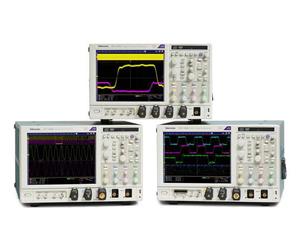

The DPO70000 Series oscilloscope delivers exceptional signal acquisition performance and analysis capability. Discover your real signals with uncompromised acquisition on all 4 channels and capture more signal details with the highest waveform capture capability in the industry. Automate setup, acquisition and analysis of high-speed serial data signals with a toolset engineered to deliver faster design and compliance testing.

• Uncompromised Bandwidth – Up to 33 GHz and rise time as fast as 9 ps on all 4 channels enables measurement on the latest high-speed serial standards
• Industry-leading Sample Rate and Timing Resolution: 100 GS/s on 2 Channels (33, 25, 20, 16, and 12.5 GHz models)
• On All Four Channels Simultaneously
  • 33, 25, 20, 16, 12.5, 8, 6, and 4 GHz Bandwidth Models
  • Up to 50 GS/s Real-time Sample Rate
  • Up to 250 Megasample Record Length with MultiView Zoom™ Feature for Quick Navigation
  • Fastest Waveform Capture Rate with >300,000 wfms/s Maximum per Channel
• Superior Signal Integrity and Excellent Signal-to-Noise Ratio – Observe the truest representation of your waveform
• Pinpoint® Triggering – Minimize time spent trying to acquire problem signals for efficient troubleshooting and shortened debug time
• Visual Trigger – Precisely qualify triggers and find unique events in complex waveforms
• 6.25 Gb/s Real-time Serial Trigger – Assures triggering on the first instance of a specified NRZ or 8b/10b pattern to allow isolation of pattern-dependent effects
• Search & Mark – Provides waveform or serial bus pattern matching and software triggers for signals of interest
• Automated Serial Triggering and Decode Options for 8b10b Encoded Serial Data, I2C, SPI, RS-232/422/485/UART, USB 2.0, and MIPI® D-PHY
• P7500 TriMode™ Probing System – Perfectly matched signal connectivity
• Application Support for High-speed Serial Industry Standards, wideband RF, Power Supplies, and Memory – Enables standard-specific certification, measurement automation, and ease of use

DPO73304D characteristics:

• Vertical system
  • Bandwidth: 33 GHz
  • Input channels: 4
  • Rise time 20% to 80% (typical): 9 ps
  • Vertical noise (typical): 0.58%
  • Delay between any two channels (typical): ≤10 ps for any two channels with equal V/div and coupling settings
  • Signal to noise ratio (typical): 34 dB
  • Maximum input voltage at 50 Ω: 1.2 Vrms
  • Offset range: +3.4 V to -3.4 V
  • Termination voltage range: +3.4 V to -3.4 V
  • Position range: ±5 div
  • Vertical resolution: 8 bit (11 bit with averaging)
• Horizontal time base system
  • Time base range: 10 ps/div to 1000 s/div
  • Time resolution in ET/IT mode: 100 fs
  • Channel-to-channel deskew: Range ±75 ns
  • Jitter noise floor (typical) with BW bandwidth enhance enabled: <250 fs
  • Time base delay time range: -5.0 ks to 1.0 ks
  • Trigger jitter (rms): 1 psrms (typical) with enhanced triggering off, <100 fsrms with enhanced triggering on
• Acquisition system
  • Sample rate, real-time mode 1, 2 channel (maximum): 100 GS/s
  • Sample rate, real-time mode 1, 2, 3, or 4 channel (maximum): 50 GS/s
  • Sample rate, ET/IT mode (maximum): 10 TS/s
  • Maximum record length per channel: 10 M on all four channels standard; Up to 250 M on all four channels with option
  • Timing resolution: 10 ps (100 GS/s)
  • Maximum duration: 0.1 ms; Up to 2.5 ms with option
• Trigger system
  • Main trigger modes: Auto, Normal, and Single
  • A Event and Delayed B Event trigger types: Edge, Glitch, Runt, Width, Transition Time, Timeout, Pattern, State, Setup/Hold, Window
  • Trigger holdoff range: 250 ns minimum to 12 s maximum
• Waveform measurements
  • Automatic measurements: 53, of which 8 can be displayed on-screen at any one time; measurement statistics, user-definable reference levels, measurement within gates isolating the specific occurrence within an acquisition to measure
  • Amplitude related: Amplitude, High, Low, Maximum, Minimum, Peak-to-Peak, Mean, Cycle Mean, RMS, Cycle RMS, Positive Overshoot, Negative Overshoot
  • Combination: Area, Cycle Area, Phase, Burst Width
  • Eye-pattern related: Extinction Ratio (absolute, %, dB), Eye Height, Eye Width, Eye Top, Eye Base, Crossing %, Jitter (p-p, RMS, 6sigma), Noise (p-p, RMS), Signal/Noise Ratio, Cycle Distortion, Q-Factor
  • Histogram related: Waveform Count, Hits in Box, Peak Hits, Median, Maximum, Minimum, Peak-to-Peak, Mean (μ), Standard Deviation (sigma), μ+1sigma, μ+2sigma, μ+3sigma
  • Time related: Rise Time, Fall Time, Positive Width, Negative Width, Positive Duty Cycle, Negative Duty Cycle, Period, Frequency, Delay
• Input/output ports front panel
  • External (auxiliary input) 50 Ω: 250 mV from DC to 50 MHz, increasing to 350 mV at 1.0 GHz
  • DC probe calibration output: BNC connector, ±10 V DC for DC probe calibration (signal available only during probe calibration)
  • Fast Edge Output: SMA connector provides fast edge signal. 1 kHz ±20%; 810 mV (base to top) ±20% into ≥10 kΩ load; 440 mV ±20% into a 50 Ω load
  • Recovered Clock: SMA connector, ≤1.25 Gb/s, Output swing ≥130 mVp-p into 50 Ω at 1.25 Gb/s. Requires Option ST6G or Option MTH to enable on DPO70000 and MSO70000 Series, standard on DSA70000 Series
  • Recovered Data: SMA connector, ≤1.25 Gb/s, Output swing of 1010 repeating pattern 200 mV into 50 Ω at 1.25 Gb/s. Requires Option ST6G or Option MTH to enable
  • USB 2.0 Ports: Allows connection of USB keyboard, mouse, or storage device
• Input/output ports rear panel
  • Audio Ports: Miniature phone jacks for stereo microphone input and stereo line output
  • Aux Trigger Output: BNC connector, 0 to 3 V; default output is A-Event Trigger low true
  • External Time Base Reference In: BNC connector; allows time base system to phase lock to external 10/100 MHz reference. Optimized (by using a software switch) for either a highly stable clock or tracking mode
  • GPIB Port: IEEE 488.2 standard
  • Keyboard Port: PS/2 compatible
  • LAN Port: RJ-45 connector, supports 10BASE-T, 100BASE-T, and 1000BASE-T
  • Mouse Port: PS/2 compatible
  • eSATA port: External SATA interface for eSATA storage devices
  • Power: 100 to 240 Vrms, ±10%, 50/60 Hz; 115 Vrms ±10%, <870 W, 400 Hz; CAT II, <1100 VA typical
  • DVI-I Video Port: Connect to show the oscilloscope display, including live waveforms on an external monitor or projector. The primary Windows desktop can also be displayed on an external monitor using these ports. Alternatively, the DVI-I port can be configured to show the secondary Windows desktop (also called extended desktop or dual-monitor display) DVI connector, female. DVI to VGA 15-pin D-sub connector adapter provided
  • Serial Port: Two DB-9 COM1 ports
  • TekLink®: Synchronizes triggers from multiple Tektronix oscilloscopes together to allow simultaneous acquisition of more than four channels
  • Time Base Reference Out: BNC connector; provides TTL-compatible output of internal 10 MHz reference oscillator
  • USB 2.0 Ports: Five on 25 and 33 GHz models, four on all others. Allow connection of USB keyboard, mouse, or storage devices
