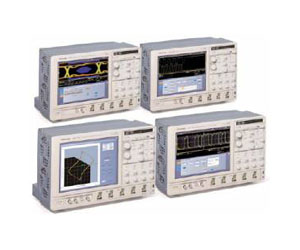

The DPO7000 Series are the new generation of real-time digital phosphor oscilloscopes and are the industry’s best solution to the challenging signal integrity issues faced by designers verifying, characterizing, debugging and testing sophisticated electronic designs.

The family features exceptional performance in signal acquisition and analysis, operational simplicity and unmatched debugging tools to accelerate your day-to-day tasks. The largest screen in the industry and the intuitive user interface provide easy access to the maximum amount of information.

• 3.5 GHz Bandwidth Model for Serial and Digital Applications
• 2.5 GHz, 1 GHz, and 500 MHz Bandwidth Models for all Applications
• Up to 40 GS/s Real Time Sample Rate on One Channel and up to 10 GS/s on All Four Channels
• Up to 400 Megasamples Record Length with MultiView Zoom™ Feature for Quick Navigation
• >250,000 wfms/s Maximum Waveform Capture Rate
• User-selectable Bandwidth Limit Filters for Better Low-frequency Measurement Accuracy
• MyScope® Custom Windows and Right Mouse Click Menus for Exceptional Efficiency
• Event Search and Mark to Facilitate the Comprehension of Event Relationships
• Pinpoint™ Triggering Provides the Most Flexible and Highest Performance Triggering, with over 1400 Combinations to Address Virtually Any Triggering Situation
• Small Footprint and Light Weight
• 12.1” Largest XGA Touch Screen Display in the Industry
• Communications Mask Testing
• Clock Recovery from Serial Data Streams
• 64 bit NRZ Serial Pattern Trigger for Isolation of Pattern-dependent Effects up to 1.25 Gb/s
• NRZ Serial Test Pattern Triggering
• Low-speed Serial Protocol Triggering (I2C,SPI, RS-232, CAN)
• Technology-Specific Software Solutions Provide Built-in Domain Expertise for Ethernet, USB 2.0 Compliance Testing, Jitter, Timing, Eye Diagram, Power, DDR Memory bus analysis, CAN, and LIN Network Design
• OpenChoice® Software with Microsoft Windows XP OS Enables Built-in Networking and Extended Analysis
