Showing Results for Tektronix DPO7104

15 results found for Tektronix dpo7104
Similar models:  Tektronix DPO7054  Tektronix DPO7254  Tektronix DPO7354
Showing page 1 of about 1 pages total.
Here you will find a large selection of new and used Tektronix DPO7104 listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $7945 to $4000 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

Tektronix DPO7104 (DPO7000 Series) Main Features and Specifications

Product Specs

  • Bandwidth 1 GHz
  • Channels 4
  • Sample Rate 20 GSa/sec
  • Memory Depth 200 M record length on one channel
  • Status Discontinued
  • Launch Date Jan-2006

See also

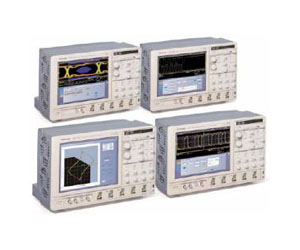

The DPO7000 Series are the new generation of real-time digital phosphor oscilloscopes and are the industry’s best solution to the challenging signal integrity issues faced by designers verifying, characterizing, debugging and testing sophisticated electronic designs.

The family features exceptional performance in signal acquisition and analysis, operational simplicity and unmatched debugging tools to accelerate your day-to-day tasks. The largest screen in the industry and the intuitive user interface provide easy access to the maximum amount of information.

  • 3.5 GHz Bandwidth Model for Serial and Digital Applications
  • 2.5 GHz, 1 GHz, and 500 MHz Bandwidth Models for all Applications
  • Up to 40 GS/s Real Time Sample Rate on One Channel and up to 10 GS/s on All Four Channels
  • Up to 400 Megasamples Record Length with MultiView Zoom™ Feature for Quick Navigation
  • >250,000 wfms/s Maximum Waveform Capture Rate
  • User-selectable Bandwidth Limit Filters for Better Low-frequency Measurement Accuracy
  • MyScope® Custom Windows and Right Mouse Click Menus for Exceptional Efficiency
  • Event Search and Mark to Facilitate the Comprehension of Event Relationships
  • Pinpoint™ Triggering Provides the Most Flexible and Highest Performance Triggering, with over 1400 Combinations to Address Virtually Any Triggering Situation
  • Small Footprint and Light Weight
  • 12.1” Largest XGA Touch Screen Display in the Industry
  • Communications Mask Testing
  • Clock Recovery from Serial Data Streams
  • 64 bit NRZ Serial Pattern Trigger for Isolation of Pattern-dependent Effects up to 1.25 Gb/s
  • NRZ Serial Test Pattern Triggering
  • Low-speed Serial Protocol Triggering (I2C,SPI, RS-232, CAN)
  • Technology-Specific Software Solutions Provide Built-in Domain Expertise for Ethernet, USB 2.0 Compliance Testing, Jitter, Timing, Eye Diagram, Power, DDR Memory bus analysis, CAN, and LIN Network Design
  • OpenChoice® Software with Microsoft Windows XP OS Enables Built-in Networking and Extended Analysis
