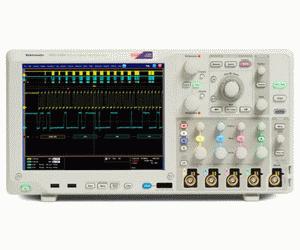

Showing Results for Tektronix DPO5054

Offering up to 2 GHz bandwidth and 10 GS/s sample rate, the MSO/DPO5000 Mixed Signal Oscilloscope Series features affordable, yet powerful Windows®-based models. With over 10 different application software packages available, you can test many different applications with a single instrument. Exclusive Tektronix features such as FastAcq with DPX® technology and a superior suite of triggers enable you to quickly find intermittent events that are otherwise easy to miss. Combine that with comprehensive analysis tools and innovative Wave Inspector® controls, the MSO/DPO5000 Series provides the feature-rich tools you need to simplify and speed up the debugging of your complex design.

• 2 GHz, 1 GHz, 500 MHz, and 350 MHz Bandwidth Models
• Up to 10 GS/s Real-time Sample Rate on One or Two Channels and up to 5 GS/s on All Four Channels
• Up to 250 Megapoint Record Length with MultiView Zoom™
• >250,000 wfms/s Maximum Waveform Capture Rate with FastAcq™
• FastFrame Segmented Memory Acquisition Mode with >310,000 Frames per Second Capture Rate
• Standard Passive Voltage Probes with Less than 4 pF Capacitive Loading and 500 MHz or 1 GHz Analog Bandwidth
• User-selectable Bandwidth Limit Filters for Better Low-frequency Measurement Accuracy
• Suite of Advanced Triggers
• Wave Inspector® Controls provide Easy Navigation and Automated Search of Waveform Data
• MyScope® Custom Control Windows and Right Mouse Click Menus for Exceptional Efficiency
• 53 Automated Measurements, Waveform Histograms, and FFT Analysis for Simplified Waveform Analysis
• TekVPI® Probe Interface supports Active, Differential, and Current Probes for Automatic Scaling and Units
• 10.4 inch (264 mm) Bright XGA Display with Touch Screen
• Small Footprint and Lightweight – Only 8.12 inches (206 mm) Deep and Less than 15 lb (6.7 kg)
• Two USB Host Ports on the Front Panel and Four on the Rear Panel for Quick and Easy Data Storage, Printing, and Connecting USB Peripherals
• USB Device Port on the Rear Panel for Easy Connection to a PC or GPIB Control with an Adapter
• Integrated 10/100/1000BASE-T Ethernet Port for Network Connection and Video Out Port to Export the Oscilloscope Display to a Monitor or Projector
• Microsoft® Windows 7 64-bit Operating System for Easy Connectivity and Integration into Your Environment
• LXI Class C Compliant
• Trigger modes
  • Main trigger modes: Auto, Normal, Single
  • Edge:Positive or negative slope on any channel or front-panel auxiliary input. Coupling includes DC, AC, HF reject, LF reject, and noise reject
  • Glitch:Trigger on or reject glitches of positive, negative, or either polarity. Programmable glitch width is 4 ns minimum to 8 s maximum
  • Runt: Trigger on a pulse that crosses one threshold but fails to cross a second threshold before crossing the first again
  • Width: Trigger on width of positive or negative pulse either within or outside of selectable limits (4 ns to 8 s)
  • Timeout: Trigger on an event that remains high, low, or either, for a specified time period (4 ns to 8 s)
  • Transition: Trigger on pulse edge rates that are faster or slower than specified. Slope may be positive, negative, or either
  • Setup/Hold: Trigger on violations of both setup time and hold time between clock and data present on any two input channels
  • Pattern: Trigger when any logical pattern of signals goes false or stays true for specified period of time (4 ns to 1 s). Pattern (AND, OR, NAND, NOR) specified for all analog and digital input channels defined as High, Low, or Don’t Care
  • State: Any logical pattern of analog channels clocked by edge on another channel. Trigger on rising or falling clock edge
  • Video: Trigger on all lines, specific line number, odd, even, or all fields on NTSC, PAL, SECAM, and HDTV 480p/60, 576p/50, 875i/60, 720p/30, 720p/50, 720p/60, 1080/24sF, 1080i/50, 1080p/25, 1080i/60, 1080p/24, 1080p/25, 1080p/50, 1080p/60, Bi-level, Tri-level
  • Optional trigger types: I²C, SPI, RS-232/422/UART, USB
• Acquisition modes
  • Sample: Acquire sampled values
  • Peak: Detect Captures narrow glitches as narrow as 100 ps (2 GHz and 1 GHz models) or 200 ps (500 MHz and 350 MHz models) at all real-time sampling rates
  • Averaging: From 2 to 10,000 waveforms included in average Envelope Min-Max envelope reflecting Peak Detect data over multiple acquisitions
  • Hi Res: Real-time boxcar averaging reduces random noise and increases resolution
  • Roll: Scrolls sequential waveform points across the display in a right-to-left rolling motion at sweep speeds slower than 50ms/div. Up to 20 MS/s with a maximum record length of 10M
  • FastAcq Acquisition Mode: FastAcq optimizes the instrument for analysis of dynamic signals and capture of infrequent events
  • Maximum FastAcq Waveform Capture Rate: >250,000 wfms/s on all 4 channels simultaneously
  • Waveform Database: Accumulate waveform database providing three-dimensional array of amplitude, time, and counts
  • FastFrame™ Acquisition: Acquisition memory divided into segments; maximum trigger rate >310,000 waveforms per second. Time of arrival recorded with each event. Frame finder tool helps to visually identify transients
• Automated Search and Mark: Search positive/negative slopes or both, glitches, runts, pulse widths, transition rate, setup and hold, timeout, windows, or find any logic or state pattern on any number of channels. Search DDR Read or Write bursts with Opt DDRA. Event table summarizes all found events. All events are time stamped in reference to trigger position. Stop acquisitions when an event is found
• Waveform Measurements: Cursors, 53 automatic measurements, eye-pattern measurements, statistics - Mean, Minimum, Maximum, Standard Deviation, Reference Levels, Gating, Histogram
• Waveform Processing/Math: Arithmetic, Algebraic Expressions, Math Functions, Relational, FFT, Definition as arbitrary math expression, Filtering Functions, Mask Function
• Software: NI LabVIEW SignalExpress Tektronix Edition, IVI Driver, LXI Class C Web Interface
• Options: Serial Triggering and Analysis, CAN and LIN Timing and Protocol Decode Software, Serial Bus Compliance Test, Power Analysis, Advanced Analysis, Jitter, Timing, and Eye Diagram Measurements, Limit/Mask Testing, DDR Memory Bus Analysis

DPO5054 characteristics:

• Vertical system
  • Input channels: 4
  • Analog bandwidth (-3 dB): 500 MHz
  • Rise time: 700 ps
  • Resolution: 8 bits (11 bits with Hi Res)
• Horizontal system
  • Maximum sample rate (all channels): 5 GS/s
  • Maximum equivalent time sampling rate: 400 GS/s
  • Maximum record length: Standard 12.5 M, with options 25 M, 50 M, 125 M
  • Maximum duration at highest real-time sample rate: 25 ms
  • Time base range: 250 ps/div to 1000 s/div
  • Channel-to-Channel deskew range: ±75 ns
