Showing Results for Tektronix 11801C

5 results found for Tektronix 11801c
Showing page 1 of about 1 pages total.
Here you will find a large selection of new and used Tektronix 11801C listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings by price. You also have the option of showing only ads that have been posted in the last 24 hours.

Tektronix 11801C () Main Features and Specifications

Product Specs

  • Bandwidth 50 GHz
  • Channels 8
  • Sample Rate 200 kSa/sec
  • Memory Depth 5 K
  • Status Discontinued

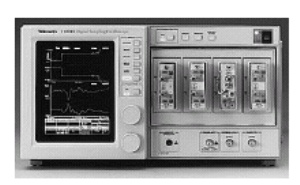

The 11801C Digital Sampling Oscilloscope offers the widest range of on-board measurement and waveform processing capabilities of any multi-Gigahertz scope. With excellent measurement repeatability, exceptional vertical resolution, and fast display update rate, the 11801C is a powerful measurement tool for semiconductor testing, TDR characterization of circuit boards, IC packages and cables, and high-speed digital data communications.

  • DC To 50-Ghz Bandwidth
  • 7-ps Rise Time
  • Eight Channels, Expandable to 136 (with SM-11 multichannel units)
  • High Resolution and Measurement Repeatability
  • 10-Femtosecond Sampling Interval (0.01 ps)
  • Modular Architecture
  • Dual-Timebase Allows Multiple Windows
  • FFT
  • Predefined Telecom Masks
  • True Dual-Step Differential TDR
  • Fully Automatic Jitter and Noise Measurements
  • Automatic Statistical Measurements, Histograms, and Mask Testing
  • Automatic Pulse Measurements with Statistics
  • Comprehensive Waveform Processing
  • Complete Programmability for ATE Applications
  • Color Display with Color Grading

Get Price Quotes

Tektronix 11801C Digital Sampling Oscilloscope
  • $1,733
    • In Stock
