The R&S®RTO oscilloscopes combine excellent signal fidelity, high acquisition rate, and the world’s first realtime digital trigger system with a compact device format in the 1 GHz and 2 GHz class. They offer hardware-accelerated measurement and analysis functions.

• Find signal faults fast: One million waveforms per second; High acquisition rates without limitation of functionality; Fast error analysis with the history view function
• Hardware-accelerated analysis: High measurement speed; FFT-based spectrum analysis; Mask test - quick configuration, reliable results; Sophisticated analysis with up to three simultaneous waveforms per channel
• Highly accurate digital trigger system: Precise measurements due to low trigger; High trigger sensitivity at full bandwidth; Adjustable digital filter for the trigger signal
• Ease of operation: Straightforward menu structure; Color-coded control elements; Signal icons with drag & drop functionality; Measurement signals always visible due to semi-transparent dialog boxes
• Convincing accuracy: Precise measurement due to very low inherent noise; High dynamic range due to single-core A/D converter; Full measurement bandwidth; Low gain and offset errors; High channel-to-channel isolation prevents crosstalk
• Logic analysis with MSO option

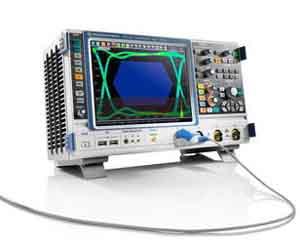

The new 4 GHz high-performance oscilloscope with its 20 Gsample/s sampling rate addresses a wide variety of applications: The R&S RTO1044 is ideal for analyzing fast signals and steep edges. It can handle different data interfaces up to a data rate of 1.6 Gbps and can also be used to test fast clock signals up to a frequency of 800 MHz.

RTO1044 specifications:

• Vertical system
  • Input channels: 4
  • Bandwidth (-3 dB at 50 ohms): 4 GHz
  • Rise time (calculated): 100 ps
  • Input impedance: 50 ohms ±1.5 %, 1 Mohm ±1 % with 15 pF (meas)
• Horizontal system
  • Time base range: 25 ps/div to 50 s/div
  • Channel deskew: ±100 ns (realtime deskew, channel-to-channel trigger)
• Acquisition system
  • Maximum sampling rate (realtime): 10 Gsample/s on each channel; 20 Gsample/s with two active channels
  • Memory depth, standard configuration, per channel/1 channel active: 20/80 Msample
  • Memory depth, maximum upgrade option, per channel/1 channel active: 100/400 Msample
  • Maximum acquisition rate, continuous acquisition and display, 10 Gsamples, 1 ksample: 1 000 000 waveforms
  • Maximum acquisition rate, ultra-segmented-mode: <200 ns blind time
  • Decimation modes, any combination of decimation mode and waveform arithmetics on up to 3 waveforms per channel: Sample, Peak Detect, High Resolution, Root Mean Square
  • Waveform arithmetics: Off, Envelope, Average
  • Interpolation modes: Linear, Sin(x)/x, Sample & Hold
• Trigger system
  • Trigger types: Edge, Glitch, Width, Runt, Window, Time-out, Interval, Slew Rate, Data2Clock, Pattern, State, Serial Pattern, I²C, SPI; Optional: UART/RS-232, LIN, CAN, FlexRay
  • Minimum detectable glitch: 50 ps
• Waveform maths
  • Algebraic categories: Mathematics, logical operations, comparison, frequency domain, digital filter
  • Hardware-accelerated mathematics: +, -, *, 1/x, |x|, derivative, log₁₀, ln, log₂, scaling, FIR, FFT magnitude
• Analysis and measurement functions
  • Hardware-accelerated analysis: Spectrum, histogram, mask test, cursor
  • Hardware-accelerated measurements: Amplitude measurements, time measurements
• Display: 10.4" LC TFT color touch screen, 1024 x 768 pixels (XGA)
• Connectivity: 1 Gbit/s LAN, 4 x USB 2.0, GPIB (optional), DVI for external monitor, external trigger
