Here you will find a large selection of new and used Rohde & Schwarz RTO1024 listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings by price. You also have the option of showing only ads that have been posted in the last 24 hours.

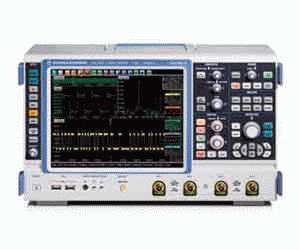

Rohde & Schwarz RTO1024 (RTO Digital Oscilloscopes) Main Features and Specifications

Product Specs

  • Bandwidth 2 GHz
  • Channels 4
  • Sample Rate 10 GSa/sec
  • Memory Depth 20 MS/ch, 80 MS with 1 ch active; Maximum upgrade: 100 MS/ch, 400 MS with 1 ch active
  • Status -
  • Launch Date Jun-2010

See also

The R&S®RTO oscilloscopes combine excellent signal fidelity, high acquisition rate, and the world’s first realtime digital trigger system with a compact device format in the 1 GHz and 2 GHz class. They offer hardware-accelerated measurement and analysis functions.

  • Find signal faults fast: One million waveforms per second; High acquisition rates without limitation of functionality; Fast error analysis with the history view function
  • Hardware-accelerated analysis: High measurement speed; FFT-based spectrum analysis; Mask test - quick configuration, reliable results; Sophisticated analysis with up to three simultaneous waveforms per channel
  • Highly accurate digital trigger system: Precise measurements due to low trigger; High trigger sensitivity at full bandwidth; Adjustable digital filter for the trigger signal
  • Ease of operation: Straightforward menu structure; Color-coded control elements; Signal icons with drag & drop functionality; Measurement signals always visible due to semi-transparent dialog boxes
  • Convincing accuracy: Precise measurement due to very low inherent noise; High dynamic range due to single-core A/D converter; Full measurement bandwidth; Low gain and offset errors; High channel-to-channel isolation prevents crosstalk

RTO1024 specifications:

  • Vertical system
    • Input channels: 4
    • Bandwidth (-3 dB at 50 ohms): 2 GHz
    • Rise time (calculated): 175 ps
    • Input impedance: 50 ohms ±1.5 %, 1 Mohm ±1 % with 15 pF (meas)
  • Horizontal system
    • Time base range: 25 ps/div to 50 s/div
    • Channel deskew: ±100 ns (realtime deskew, channel-to-channel trigger)
  • Acquisition system
    • Maximum sampling rate (realtime): 10 Gsample/s per channel
    • Memory depth, standard configuration, per channel/1 channel active: 20/80 Msample
    • Memory depth, maximum upgrade option, per channel/1 channel active: 100/400 Msample
    • Maximum acquisition rate, continuous acquisition and display, 10 Gsamples, 1 ksample: 1 000 000 waveforms
    • Maximum acquisition rate, ultra-segmented-mode: <200 ns blind time
    • Decimation modes, any combination of decimation mode and waveform arithmetics on up to 3 waveforms per channel: Sample, Peak Detect, High Resolution, Root Mean Square
    • Waveform arithmetics: Off, Envelope, Average
    • Interpolation modes: Linear, Sin(x)/x, Sample & Hold
  • Trigger system
    • Trigger types: Edge, Glitch, Width, Runt, Window, Time-out, Interval, Slew Rate, Data2Clock, Pattern, State, Serial Pattern, I²C, SPI; Optional: UART/RS-232, LIN, CAN, FlexRay
    • Minimum detectable glitch: 100 ps
  • Waveform maths
    • Algebraic categories: Mathematics, logical operations, comparison, frequency domain, digital filter
    • Hardware-accelerated mathematics: +, -, *, 1/x, |x|, derivative, log10, ln, log2, scaling, FIR, FFT magnitude
  • Analysis and measurement functions
    • Hardware-accelerated analysis: Spectrum, histogram, mask test, cursor
    • Hardware-accelerated measurements: Amplitude measurements, time measurements
  • Display: 10.4" LC TFT color touch screen, 1024 x 768 pixels (XGA)
  • Connectivity: 1 Gbit/s LAN, 4 x USB 2.0, GPIB (optional), DVI for external monitor, external trigger
