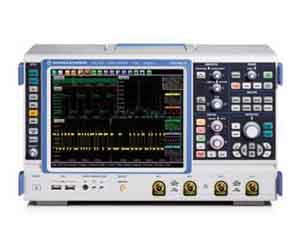

Rohde & Schwarz RTO1004 (RTO Digital Oscilloscopes) Main Features and Specifications

Product Specs

  • Bandwidth 600 MHz
  • Channels 4
  • Sample Rate 10 GSa/sec
  • Memory Depth 20 MS/ch, 80 MS with 1 ch active; Maximum upgrade: 100 MS/ch, 400 MS with 1 ch active
  • Status -
  • Launch Date Aug-2011

See also

The R&S®RTO oscilloscopes combine excellent signal fidelity, high acquisition rate, and the world’s first realtime digital trigger system with a compact device format in the 1 GHz and 2 GHz class. They offer hardware-accelerated measurement and analysis functions.

  • Find signal faults fast: One million waveforms per second; High acquisition rates without limitation of functionality; Fast error analysis with the history view function
  • Hardware-accelerated analysis: High measurement speed; FFT-based spectrum analysis; Mask test - quick configuration, reliable results; Sophisticated analysis with up to three simultaneous waveforms per channel
  • Highly accurate digital trigger system: Precise measurements due to low trigger; High trigger sensitivity at full bandwidth; Adjustable digital filter for the trigger signal
  • Ease of operation: Straightforward menu structure; Color-coded control elements; Signal icons with drag & drop functionality; Measurement signals always visible due to semi-transparent dialog boxes
  • Convincing accuracy: Precise measurement due to very low inherent noise; High dynamic range due to single-core A/D converter; Full measurement bandwidth; Low gain and offset errors; High channel-to-channel isolation prevents crosstalk

RTO1004 specifications:

  • Vertical system
    • Input channels: 4
    • Bandwidth (-3 dB at 50 ohms): 600 MHz
    • Rise time (calculated): 583 ps
    • Input impedance: 50 ohms ±1.5 %, 1 Mohm ±1 % with 15 pF (meas)
  • Horizontal system
    • Time base range: 25 ps/div to 50 s/div
    • Channel deskew: ±100 ns (realtime deskew, channel-to-channel trigger)
  • Acquisition system
    • Maximum sampling rate (realtime): 10 Gsample/s per channel
    • Memory depth, standard configuration, per channel/1 channel active: 20/80 Msample
    • Memory depth, maximum upgrade option, per channel/1 channel active: 100/400 Msample
    • Maximum acquisition rate, continuous acquisition and display, 10 Gsamples, 1 ksample: 1 000 000 waveforms
    • Maximum acquisition rate, ultra-segmented-mode: <200 ns blind time
    • Decimation modes, any combination of decimation mode and waveform arithmetics on up to 3 waveforms per channel: Sample, Peak Detect, High Resolution, Root Mean Square
    • Waveform arithmetics: Off, Envelope, Average
    • Interpolation modes: Linear, Sin(x)/x, Sample & Hold
  • Trigger system
    • Trigger types: Edge, Glitch, Width, Runt, Window, Time-out, Interval, Slew Rate, Data2Clock, Pattern, State, Serial Pattern, I²C, SPI; Optional: UART/RS-232, LIN, CAN, FlexRay
    • Minimum detectable glitch: 100 ps
  • Waveform maths
    • Algebraic categories: Mathematics, logical operations, comparison, frequency domain, digital filter
    • Hardware-accelerated mathematics: +, -, *, 1/x, |x|, derivative, log10, ln, log2, scaling, FIR, FFT magnitude
  • Analysis and measurement functions
    • Hardware-accelerated analysis: Spectrum, histogram, mask test, cursor
    • Hardware-accelerated measurements: Amplitude measurements, time measurements
  • Display: 10.4" LC TFT color touch screen, 1024 x 768 pixels (XGA)
  • Connectivity: 1 Gbit/s LAN, 4 x USB 2.0, GPIB (optional), DVI for external monitor, external trigger
