Showing Results for Tektronix 2445A

4 results found for Tektronix 2445a
Similar models:  Tektronix 2465A  Tektronix 2467
Showing page 1 of about 1 pages total.
Here you will find a large selection of new and used Tektronix 2445A listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings by price. You also have the option of showing only ads that have been posted in the last 24 hours.

Tektronix 2445A (2400 Series) Main Features and Specifications

Product Specs

  • Bandwidth 150 MHz
  • Channels 4
  • Vertical Sensitivity Low Range [mV/div] 2
  • Vertical Sensitivity High Range [V/div] 5
  • Status Discontinued

See also

  • 150 MHz Bandwidth
  • 2.33 ns Rise Time
  • Auto Setup
  • Save and Recall Setups
  • Set-Up Sequencing
  • On-Screen Trigger-Level Readout
  • Volts and Time Cursors with On-Screen Readout
  • Cursors After Delay
  • Four Independent Channels
  • Switchable 1 Mohm and 50 ohm Inputs (channels 1 & 2)
  • Channel 1 and Channel 2 : Frequency Response (-3 dB Bandwidth): 150 MHz : Step Response: < 2.33 ns
  • Horizontal System:
    • A Sweep Time Base Range: 500 ms/div to 10 ns/div in a 1-2-5 sequence of 24 steps. (X10 magnification extends fastest sweep rate to 1 ns/div)
    • B Sweep Time Base Range: 50 ms/div to 10 ns/div in a 1-2-5 sequence of 21 steps. (X10 magnification extends fastest sweep rate to 1 ns/div)
    • DT Readout Resolution: either 20 ps or 0.025% of full scale, whichever is greater
    •  Sweep Delay Range: from 500 ms/div to 20 ns/div

Get Price Quotes

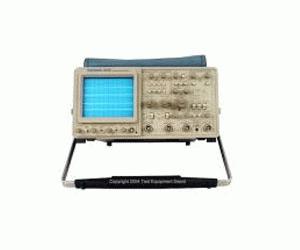

Tektronix 2445A Opts: no option
  • €749
