Keysight Technologies (Agilent HP) 8752A () Main Features and Specifications

Product Specs

  • Status Discontinued
  • Alternative E5061A ENA-L RF Network Analyzer

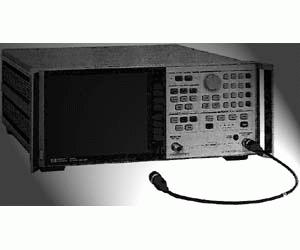

The HP 8752 is a high performance vector network analyzer for laboratory or production measurements of transmission and reflection parameters. It integrates a synthesized RF source and two separate measurement channels, a built-in transmission / reflection test set, and color display. No external equipment is required. An RF cable is supplied.

The 8752A provides 50 Ω tramsmission / reflection measurements and displays magnitude, phase, and group delay responses of active and passive RF networks. The 8752B provides the same features, but with a nominal system impedance of 75 Ω.

Two independent channels and a large color screen display the measured results of one or both channels, in rectangular or polar / Smith chart formats.

Measurement functions are selected with front panel keys and softkey menus. Displayed measurement results can be printed or plotted directly to a compatible peripheral without the use of an external computer. Instrument states can be saved in internal memory for at least three days. In addition, the instrument can control a compatible disk drive for external storage capability.

  • Buffer for plotting or printing while the instrument continues to make measurements
  • Trace math, data averaging, trace smoothing, electrical delay, measurement calibration
  • Automated operation with or without an external computer
  • Frequency range:
    • Standard: 300 kHz to 1.3 GHz
    • With option 003: 300 kHz to 3 GHz
  • Frequency resolution: 1 Hz
  • Test port power range: -20 to +5 dBm, resolution: 0.1 dB
  • Maximum receiver input level:
    • Transmission port: 0 dBm
    • Reflection port: 10 dBm
  • Damage level:
    • Transmission port: 20 dBm or >25 Vdc
    • Reflection port: 30 dBm or >25 Vdc
  • Receiver dynamic range: 100 dB
  • Noise level: -75, -85, -90, -100 dBm
  • Magnitude resolution: 0.01 dB/div
  • Magnitude reference level: ±500 dB with resolution of 0.001 dB
  • Phase range: ±180 °
  • Frequency response: ±3 °
  • Phase reference level range: ±500 ° with resolution of 0.01 °
  • Group delay:
    • Aperture: Selectable - maximum aperture 20% of frequency span, minimum aperture (frequency span)/(number of points - 1)
    • Range: 1/(2 x minimum aperture)
  • HP-IB interface:
    • Transfer formats: Binary, CITIFile ascii, 32/64 bit IEEE 754 Floating Point Format
    • Function Codes: SH1, AH1, TE0, L4, LE0, SR1, RL1, PP0, DC1, DT1, C1, C2, C3, C10, E2
  • Front panel connector: Type-N (female), 50 Ω (nominal)
  • Rear panel connectors:
    • External Reference Frequency Input (EXT REF INPUT): Frequency 1, 2, 5, and 10 MHz, Level -10 dBm to +20 dBm, Impedance 50 Ω
    • External Auxiliary Input (AUX INPUT): Input voltage limits: -10 V to +10 V
    • External AM Input (EXT AM): ±1 volt into a 5 kΩ resisitor, 1 kHz maximum, resulting in 8 dB/volt amplitude modulation
    • External Trigger (EXT TRIGGER): Triggers on a negative TTL transition or contact closure to ground
