Here you will find a large selection of new and used Keysight Technologies (Agilent HP) 8722ES listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings by price. You also have the option of showing only ads that have been posted in the last 24 hours.

Keysight Technologies (Agilent HP) 8722ES (8720E Family) Main Features and Specifications

Product Specs

  • Instrument Type Vector, S-Parameter
  • Low end frequency limit 50 MHz
  • High End Frequency Limit 40 GHz
  • Output Power Range 80 dB at 20 to 40 GHz
  • Input Noise Level -120 dBm < 8GHz
  • Status Discontinued
  • Supported until May-2010
  • Alternative N5230A PNA-L Network Analyzer (Option 420/425)

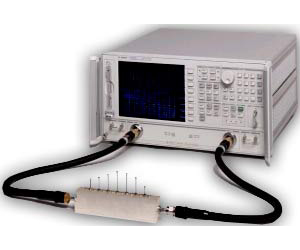

The Agilent 8722ES vector network analyzer allows complete characterization of RF and microwave components. The Agilent 8722ES includes an integrated synthesized source, test set and tuned receiver. The built-in S-parameter test set provides a full range of magnitude and phase measurements in both the forward and reverse directions. Built-in vector accuracy enhancement techniques include full two-port, adapter-removal, and optional TRL calibration.

  • 50 MHz to 40 GHz 100 dB of dynamic range
  • Excellent measurement accuracy
  • Two measurement channels
  • Four display channels
  • Frequency and power sweeps
  • Fast sweep and data transfer speed
  • Pass/Fail testing, powerful marker functions Electronic calibration (ECal)
  • Internal automation with test-sequencing
  • Optional time-domain, high power test set, four samplers and TRL calibration, direct sampler access, frequency-offset mode
