Keysight Technologies (Agilent HP) E5071C-4D5 (ENA Series) Main Features and Specifications

Product Specs

  • Instrument Type S-Parameter
  • Low end frequency limit 300 kHz
  • High End Frequency Limit 14 GHz
  • Output Power Range – 85 dBm to +10 dBm (1 MHz to 6 GHz)
  • Input Noise Level -130 to -110 dBm/Hz
  • Status -
  • Launch Date Jul-2009

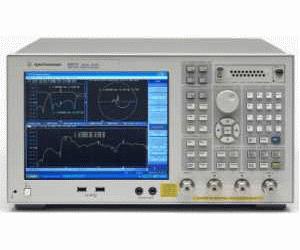

The E5071C network analyzer offers the highest RF performance and fastest speed in its class, with a wide frequency range and versatile functions. The E5071C is the ideal solution for manufacturing and R&D engineers evaluating RF components and circuits for frequency ranges up to 20 GHz.

The new 6.5 and 14 GHz options expand the frequency of the E5071C range beyond the existing 4.5, 8.5, and 20 GHz line-up, allowing users to select the most suitable frequency option for their specific application and significantly reducing the cost of test on the production line. Both the 6.5 and 14 GHz options support 2- and 4-port configurations. Such flexibility is ideal for component manufacturers, wireless designers, and aerospace/defense contractors performing RF component test.

The E5071C-4D5 is a 4-port test set, 300 kHz to 14 GHz with bias tees.

  • Wide dynamic range: > 123 dB dynamic range at test port (typical)
  • Fast measurement speed: 41 ms @ full 2-port cal, 1601 points
  • Low trace noise: 0.004 dB rms @ 70 kHz IFBW
  • Integrated S-parameter test set
  • Port options: 2-port and 4-port
  • Balanced measurements (4-port option)
  • Frequency options: From 9 kHz - 4.5 GHz/6.5 GHz/8.5 GHz, 100 kHz - 4.5 GHz/6.5 GHz/8.5 GHz (with bias tees), 300 kHz - 14 GHz/20 GHz (with bias tees)
  • Built-in Visual Basic for Applications (VBA)
