Keysight Technologies (Agilent HP) 8505A () Main Features and Specifications

Product Specs

  • Status Discontinued
  • Alternative E8362B/C PNA Series Microwave Network Analyzers

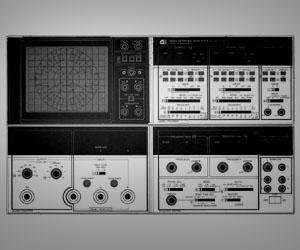

The HP 8505A is a high performance RF network analyzer that includes a leveled source, frequency counter, two measurement channels, dual-trace CRT with both cartesian and polar displays, digital readout of the measured value, and an electronic line stretcher. Together with appropriate signal routing accessories, the 8505A is a fully integrated stimulus/response test system that measures magnitude, phase, and delay characteristics of linear networks by comparing the incident signal with the signal transmitted through the device or reflected from its input.

  • Frequency: 500 kHz to 1.3 GHz
  • Output power: +10 dBm to -72 dBm
  • Attenuator accuracy: ±1.5 dBm over 70 dB range
  • Residual FM
    • 500 kHz - 13 MHz: 50 Hz rms (20 Hz - 1 kHz bandwidth)
    • 500 kHz - 130 MHz: 200 Hz rms (20 Hz - 1 kHz bandwidth)
    • 500 kHz - 1.3 GHz: 2 kHz rms (20 Hz - 10 kHz bandwidth)
  • Harmonics: >25 dB below main signal at +10 dBm output level
  • Sub-harmonics and spurious: <-50 dBm at +10 dBm output level
  • Sweep times: 10 ms to 100 s
  • Sweep modes: Linear Full, Log Full, Start/Stop 1/2, CW, CW ±ΔF, Alternate
  • Trigger modes: auto, line sync, external sync, single scan
  • Input channels: R, A, and B
  • Dynamic range: 100 dB
  • Receiver damage level: +20 dBm or ≥50 Vdc
  • Phase
    • Range: ±180 °
    • Frequency response: 500 kHz - 750 MHz, ±3 °; 750 MHz - 1.3 GHz, ±5 °
  • Delay frequency response:  ±1 ns (1 MHz to 1.3 GHz)
