Here you will find a large selection of new and used Rohde & Schwarz NRVD listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $2148 to $1298 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

Rohde & Schwarz NRVD (Dual-Channel Power Meters) Main Features and Specifications

Product Specs

  • Sensors NRV-Z1,Z2,Z3,Z4,Z5,Z6,Z15,Z31,Z32,Z33,Z51,Z52,Z53,Z54,Z55
  • Channels 2
  • Freq. Range High 40 GHz
  • Sensor Type Diode,Thermocouple
  • Computer Interface IEC/IEEE
  • Status -

The NRVD covers a total bandwidth of 40 GHz and a power span from 100 pW up to the kW range. Being individually and absolutely calibrated, the measuring heads can be interchanged as required without impairing specified error limits.

The wide range of measuring heads includes thermal power sensors as well as highly sensitive diode power sensors, peak power sensors, probes and insertion units for voltage measurements.

  • Two independent channels performing simultaneous measurements
  • LC display with variable backlighting, separate digital readout for each channel, bargraph indicator
  • Menu-guided operation with softkeys
  • IEC/IEEE-bus interface (optionally SCPI or compatible with URV5)
  • Entry of reference values for level and attenuation
  • 13 digital filters for noise suppression, automatic or manual filter selection
  • Storage of 20 complete instrument setups
  • Input/output option with DC frequency input, analog outputs, trigger input, ready output
  • Large variety of intelligent sensors: plug and play
  • Rear connectors for sensors
  • Sensor check source

Get Price Quotes

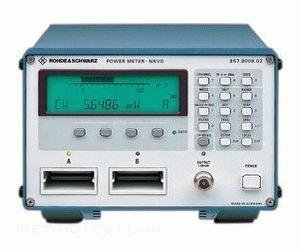

Rohde and Schwarz NRVD Dual Channel Power Meter
  • $1,373
    • In Stock
