Giga-tronics 8652B (8650B Series) Main Features and Specifications

Product Specs

  • Sensors 80301A-4A, 81305A/10A/13A/14A, 80321A/2A/5A, 80350A Series sensors, 80400A Series sensors, 80501-4, 80600A Series sensors, 80701A, 80421A/2A/5A, 80330A/3A/4A
  • Channels 2
  • Freq. Range Low 10 MHz
  • Freq. Range High 50 GHz
  • Sensor Type Diode
  • Computer Interface GPIB, USB, Ethernet, Serial
  • Status -

See also

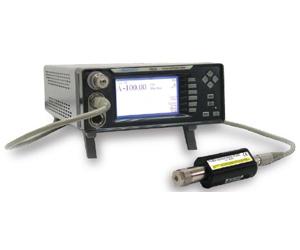

The Giga-tronics 8650B series universal power meters have the extensive measurement capabilities and unique features required to test sophisticated communications systems faster and more accurately.

The 8650B can measure the CW power, peak power and average power of TDMA, GSM, and CDMA signals. CW measurement speeds (readings/second) over GPIB are > 1,750 and modulated measurement speeds are > 300. And the meter includes many time saving features such as automatic time gate setting, direct crest factor measurement, and statistical power measurement analysis. Giga-tronics diode sensors provide speed, dynamic range, and accuracy over a 90 dB range with power levels from -70 dBm (100 pW) up to +47 dBm (50 Watts) and frequency ranges from 10 MHz to 50 GHz and modulation bandwidths up to 10 MHz.

Giga-tronics power meter architecture provides for a broad choice of functional sensors. Just by changing a sensor, you can measure CW power, pulse power, and the peak and average power of TDMA, GSM and CDMA signals faster, more accurately, and over a wider range.

  • Large selection of Power Sensors
  • Measure complex signals over wide dynamic range easily with high linearity and accuracy
  • 10 MHz to 50 GHz performance eliminates the need for multiple power sensors providing reduced cost and complexity while increasing reliability
  • Fast measurement speed and complete connectivity is ideal for automated test system applications
  • Average (CW), peak, pulse and modulated
  • Built-in frequency response calibration
  • Gating and triggering
  • Statistical analysis
  • GPIB, USB, and Ethernet

8650B Series specifications:

  • Frequency Range: 10 MHz to 50 GHz
  • Power Range: -70 dBm to +47 dBm (100 pW to 50 Watts)
  • Channels: Single (8651B)or Dual (8652B)
  • Modulation Bandwidth: > 10 MHz
  • Sample Rate: 2.5 to 5 MHz asynchronous
  • Maximum Single Sensor CW Dynamic Range: 90 dB
  • Maximum Peak Power Sensor Rise Time: 100 ns
  • Measurement Modes: CW, Peak (Pulse), MAP/PAP/BAP
  • Instrument Linearity: ± 0.02 dB
  • 0 dBm Accuracy: ± 1.2%
  • Averaging: Auto or Manual, Over Time or Number of Readings
  • dB Relative and dB Offset: -99.999 to +99.999
  • Display Resolution: 0.001 dB (Log), 4 digits (Linear)
  • Displays: A, B, A/B, B/A, A-B, B-A, DLYA, DLYB
  • Remote Control: GPIB, USB, Ethernet, and Serial
