Here you will find a large selection of new and used Giga-tronics 8652A listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $3445 to $250 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

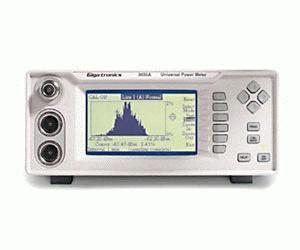

Giga-tronics 8652A (8650A Series) Main Features and Specifications

Product Specs

  • Sensors 80300A Series CW Power Sensors,tronics 80350A Series Peak Power Sensor,80400A Series Modulated Power Sensors,80600A Series Modulated Power Sensors, 80701A Modulated Power Sensor
  • Channels 2
  • Freq. Range Low 100 kHz
  • Freq. Range High 40 GHz
  • Sensor Type Diode
  • Computer Interface GPIB,RS-232
  • Status -

See also

The Giga-tronics 8650A Series Universal Power Meters have the extensive measurement capabilities and features you need to test today sophisticated communications systems faster, easier and more accurately.

The 8650A can measure the CW power, peak power and average power of TDMA, GSM, and CDMA (both IS-95 and third-generation 10 MHz wide band) signals. CW measurement speeds (readings/second) over GPIB are >1,750 and modulated measurement speeds are >300. And the meter includes many time saving features such as automatic time gate setting, direct crest factor measurement, and statistical power measurement analysis.

  • 100 kHz to 40 GHz Frequency Range, depending on sensor
  • -70 to +47 dBm Power Range, depending on sensor
  • Linearity ± 0.02 dB
  • Two models - 8651A  (Single input) and 8652A  (Double input)
