Here you will find a large selection of new and used Giga-tronics 8502A listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings by price. You also have the option of showing only ads that have been posted in the last 24 hours.

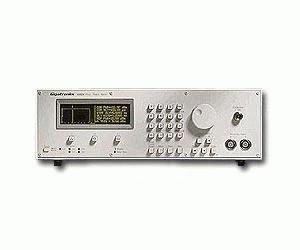

Giga-tronics 8502A (8500A Series) Main Features and Specifications

Product Specs

  • Sensors 16936, 16937: 750 MHz to 18.5 GHz; 17266: 750 MHz to 26.5 GHz; 17071: 750 MHz to 40 GHz; 16934, 16935: 30 MHz to 18.5 GHz; 17267: 30 MHz to 26.5 GHz
  • Channels 2
  • Freq. Range Low 30 MHz
  • Freq. Range High 40 GHz
  • Sensor Type Diode
  • Computer Interface GPIB
  • Status Discontinued

See also

  • Frequency Range: 30 MHz to 40 GHz depending on detectors (see PEAK POWER SENSOR specifications)
  • Power Range
    •  Pulse: -20 dBm to +20 dBm
    •  CW: -40 dBm to +20 dBm
  • Time Base Range: 1.2 ns/div to 20 ms/div (12 ns to 200 ms time window), using either the Data Entry Keyboard or the Control Knob.
    •  Resolution: 0.1 ns
  • Trigger Delay Range: 0 to 200 ms using either the Data Entry Keyboard or the Control Knob.  Resolution: 0.1 ns
  • Triggering Modes
    •  Internal: -10 dBm to +16 dBm
    •  External (BNC): TTL levels, Maximum PRF 1 MHz
  • Markers: Up to 4 markers/channel plus a Reference Power Level cursor
  • Graph Display Mode: Plots the outline of the detected pulse on the electroluminscent display
  • Output Channels
    •  8501A: Single Channel
    •  8502A: Dual Channel
  • Auxiliary Outputs/Inputs (BNC)
