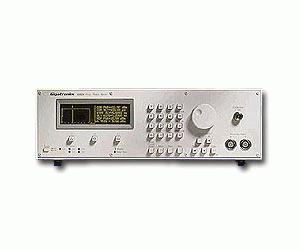

Giga-tronics 8501A (8500A Series) Main Features and Specifications

Product Specs

  • Sensors 16936, 16937: 750 MHz to 18.5 GHz; 17266: 750 MHz to 26.5 GHz; 17071: 750 MHz to 40 GHz; 16934, 16935: 30 MHz to 18.5 GHz; 17267: 30 MHz to 26.5 GHz
  • Channels 1
  • Freq. Range Low 30 MHz
  • Freq. Range High 40 GHz
  • Sensor Type Diode
  • Computer Interface GPIB
  • Status Discontinued

See also

  • Frequency Range: 30 MHz to 40 GHz depending on detectors (see PEAK POWER SENSOR specifications)
  • Power Range
    •  Pulse: -20 dBm to +20 dBm
    •  CW: -40 dBm to +20 dBm
  • Time Base Range: 1.2 ns/div to 20 ms/div (12 ns to 200 ms time window), using either the Data Entry Keyboard or the Control Knob.
    •  Resolution: 0.1 ns
  • Trigger Delay Range: 0 to 200 ms using either the Data Entry Keyboard or the Control Knob.  Resolution: 0.1 ns
  • Triggering Modes
    •  Internal: -10 dBm to +16 dBm
    •  External (BNC): TTL levels, Maximum PRF 1 MHz
  • Markers: Up to 4 markers/channel plus a Reference Power Level cursor
  • Graph Display Mode: Plots the outline of the detected pulse on the electroluminscent display
  • Output Channels
    •  8501A: Single Channel
    •  8502A: Dual Channel
  • Auxiliary Outputs/Inputs (BNC)
