Here you will find a large selection of new and used Keysight Technologies (Agilent HP) N1912A listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $19197 to $10000 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

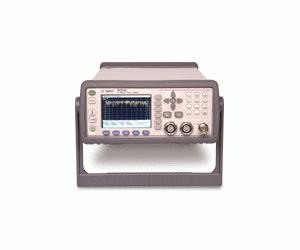

Keysight Technologies (Agilent HP) N1912A (P Series) Main Features and Specifications

Product Specs

  • Sensors P-Series wideband power sensors, E-series sensors and 8480 series power sensors
  • Channels 2
  • Freq. Range Low 50 MHz
  • Freq. Range High 40 GHz
  • Sensor Type Diode
  • Computer Interface GPIB, LAN, USB2
  • Status -

When used with the N192XA wideband power sensors, the N1912A P-Series single channel power meter provides a measurement frequency range from 50 MHz to 40 GHz with an internal zero and calibration capability

  • 30 MHz video bandwidth
  • Single shot real time capture at 100 Msample/s per second
  • Key Measurements: - peak, average, peak-to-average ratio, rise time, fall time and pulse width
  • High Speed Complementary Cumulative Distribution Function (CCDF) statistical analysis
  • Also compatible with the industry standard 8480 and E-series sensors (except E932x), which provide a wide dynamic range from -70 to +44 dBm, and a frequency coverage from 9 kHz to 110 GHz
  • Zero and calibrate while connected to the DUT
  • Versatile connectivity with USB, LAN and GPIB as standard
  • 2-year calibration cycle
  • Difference and ratio math functions : (A-B, B-A, A/B and B/A)



Get Price Quotes

Keysight N1912A
  • $13,000
    • In Stock
