Here you will find a large selection of new and used Keysight Technologies (Agilent HP) E4419B listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $2832 to $440 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

Keysight Technologies (Agilent HP) E4419B (EPM Series) Main Features and Specifications

Product Specs

  • Sensors Compatible with all 8480 series and E-series sensors
  • Channels 2
  • Freq. Range Low 9 kHz
  • Freq. Range High 110 GHz
  • Computer Interface GPIB,RS-232,RS-422
  • Status -

See also

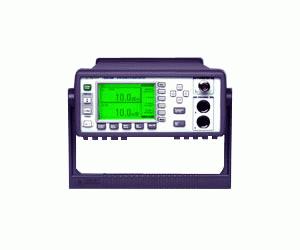

The E4419B power meter is designed for bench and automatic test equipment (ATE) use.

  • True dual-channel power meter - two simultaneous power readings
  • Fast measurement speed (up to 100 readings per second, over the GPIB, with E-series sensors)
  • Speed improvement of x2 using the 8480 series power sensor (compared to the 437B)
  • No range-switching delays with 8480 series sensors, and only one fast-range switching point with E-series sensors
  • Code compatibility with 438A power meter
  • GPIB and RS232 connector for remote control of all functions
  • Internal rechargeable battery option provides up to 4 hours continuous use (option 001)
  • Frequency range: 9 kHz to 110 GHz, sensor dependent
  • Power range: –70 dBm to +44 dBm (100 pW to 25 W), sensor dependent
  • Power sensors: Compatible with all 8480 series and E-series sensors
  • Single sensor dynamic range:
    90 dB maximum (E-series sensors),
    50 dB maximum ( 8480 series sensors)
  • Connector type: Type N (f), 50 Ω
