Showing Results for Keysight Technologies (Agilent HP) E4417A

19 results found for Agilent hp e4417a
Similar models:  Keysight Technologies (Agilent HP) E4416A
Showing page 1 of about 1 pages total.
Here you will find a large selection of new and used Keysight Technologies (Agilent HP) E4417A listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $14067 to $1150 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

Keysight Technologies (Agilent HP) E4417A (EPM-P Series) Main Features and Specifications

Product Specs

  • Sensors 8430; E-series CW and E9320,E9300
  • Channels 2
  • Freq. Range Low 9 kHz
  • Freq. Range High 110 GHz
  • Computer Interface GPIB,RS-232,RS-422
  • Status -

See also

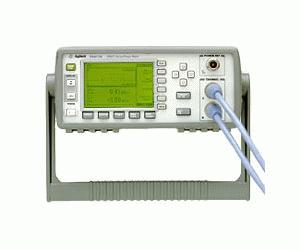

The Agilent E4417A dual channel EPM-P series power meter, for peak, average, peak-to-average ratio and time-gated measurements, using the E9320 peak and average power sensors.

  • 20 Msample/s per second sampling rate for reliable continuous and single shot measurements on wide bandwidth signals
  • Time-gated and free run power measurements
  • Free Analyzer Software software for complete pulse and statistical analysis, software is located In the Library
  • 8 pre-defined wireless configurations (GSM, EDGE, NADC, iDEN, Bluetooth™, IS-95 CDMA, W-CDMA and cdma2000)
  • Frequency range: 9 kHz to 110 GHz, sensor dependent
  • Power range: -70 to +44 dBm, sensor dependent
  • Display resolution: Selectable resolution of 1.0, 0.1,0.01, 0.001 dB in logarithmic mode, or 1 to 4 significant digits in linear mode.
  • Offset range: ±100 dB in 0.001 dB increments, to compensate for external loss or gain
  • Single sensor dynamic range
    • E-series E9320 peak and average power sensors:
      70 dB maximum (normal mode); 85 dB maximum (average only mode)
    • E-series CW power sensors: 90 dB
    • E-series E9300 average power sensors:80 dB maximum
    • 8480 series sensors: 50 dB maximum
