Keysight Technologies (Agilent HP) 8900D (Peak Power Meter Digital Meters) Main Features and Specifications

Product Specs

  • Sensors 84811A peak power sensor
  • Channels 1
  • Freq. Range Low 100 MHz
  • Freq. Range High 18 GHz
  • Status Discontinued
  • Supported until Nov-2006
  • Alternative E4416A

See also

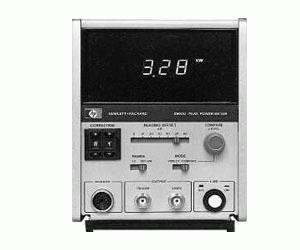

The Agilent 8900D power meter directly displays the peak power of RF pulses over a 100 MHz to 18 GHz frequency range. Measurements can be made on pulses with widths from 1 µs (100 ns in compare mode) to CW, and repetition rates from 100 Hz (0 Hz in compare mode) to 100 kHz. The 8900D has a high-resolution 3 and 1/2 digit digital display calibrated in watts. The direct reading display and range annunciator make the digital version a good choice for productions and field applications where unambiguous or frequent readings are required.

  • Frequency Range 100 MHz to 18 GHz
  • Direct display of RF pulses
  • Use with the 84811A peak power sensor
  • Dynamic Range: (2 ranges of 10 and 100 mW full scale) 20 dB (0 to +20 dBm)
  • Pulse Response: Direct Mode Pulse Width: 1 µs to CW Repetition Rate: 100 Hz to 100 kHz
  • Rise-Time:75 ns
  • Fall-Time: 125 ns
