Showing Results for Keysight Technologies (Agilent HP) 438A

12 results found for Agilent hp 438a
Showing page 1 of about 1 pages total.
Here you will find a large selection of new and used Keysight Technologies (Agilent HP) 438A listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $1500 to $165 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

Keysight Technologies (Agilent HP) 438A (Dual Sensor Power Meters) Main Features and Specifications

Product Specs

  • Channels 2
  • Freq. Range Low 100 kHz
  • Freq. Range High 26.5 GHz
  • Computer Interface GPIB
  • Status Discontinued
  • Supported until Jul-2003
  • Alternative E4419B

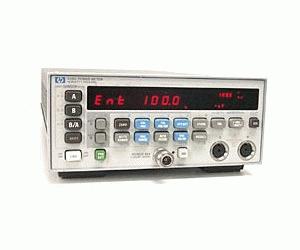

The Agilent 438A power meter is a dual-channel power meter designed specifically for ATE systems. The compact front panel saves critical rack space, while the dual-channel design allows simple and accurate measurements of the ratio and difference of power levels from two separate sensors. This meter is compatible with the 8480 series of power sensors.

GPIB capability is standard on the 438A. For U.S. Air Force Modular Automatic Test Equipment (MATE) system application, Option 700 provides the 438A with the internal capability to be controlled by the MATE Control Interface Intermediate Language (CIIL).

  • June 2006: Trade-up deal to EPM, EPM-P, or P-series power meters
  • Two power sensors for multi-port measurement
  • Ratio mode for measuring gain compression
  • Programmable high and low power limits for unattended power monitoring
  • Frequency: 100 kHz to 26.5 GHz
  • Power Range: -70 to +44 dBm
  • Dynamic Range: 50 dB
  • Measurement Modes: A, B, A-B, B-A, A/B, B/A
