ILX Lightwave FPM-8200 (Fiber Optic Power Meters) Main Features and Specifications

Product Specs

  • Status -

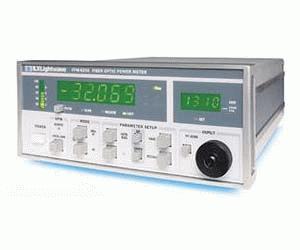

The FPM-8200 Fiber Optic Power Meter was designed for general purpose precision power measurements from fiber optic sources and components. The 8200 features a 75dB dynamic measurement range with a measurement accuracy of 2.5% traceable to NIST calibration standards. In addition to precision power measurements, the FPM-8200 is loaded with standard features such as log/linear display modes, auto-ranging, relative measurement mode, and save/recall functions for storing and retrieving instrument con?gurations. These features plus an analog output proportional to measured power and an IEEE GPIB interface combine to make the FPM-8200 a versatile laboratory or production test instrument.

  • Optical power measurement to +1.5 dBm from 800 to 1600nm
  • 75dB of dynamic range with ±0.015dB linearity over the entire range
  • NIST-traceable calibration with an accuracy of ±2.5% at reference conditions
  • Analog output proportional to measured power
  • Fiber optic connector adapters for the most common fiber optic connectors
  • IEEE-488 GPIB instrument interface
