Keysight Technologies (Agilent HP) 86122B (Multi-Wavelength Meter Family) Main Features and Specifications

Product Specs

  • Measurement Units dBm,Watt
  • Low end wavelength limit 1.3 µm
  • High End Wavelength Limit 1.6 µm
  • Power Range Maximum safe input level: +18 dBm
  • Accuracy ±0.2 ppm absolute accuracy
  • Type Laser
  • Status -

See also

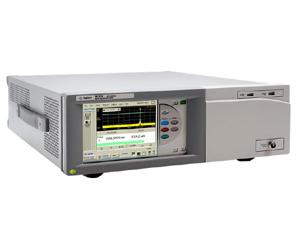

The Agilent 86122B Multi-Wavelength Meter is best suited to the efficient development, manufacture, and verification of tunable transmitter lasers and optical subsystems for the high-speed applications of today and tomorrow.

The 86122B Multi-Wavelength Meter is an updated version of the proven 86122A. It has been redesigned to allow for ongoing support and manufacturability, and was updated to accommodate the computing environments of today. Extra care has been taken to minimize costly downtime in 24/7 operated testing. While maintaining backward compatibility to its predecessor, the new instrument version benefits from two front panel accessible USB ports to host a USB flash drive, mouse or keyboard.

  • Maximum Number of Laser Lines Input: 1000
    Wavelength Range: 1270 – 1650 nm (182 to 236 THz)
  • Wavelength scan in less than 0.5sec
  • Laser linewidth is <2.5 GHz
  • Wavelength Absolute Accuracy: ±0.2 ppm (±0.3 pm at 1550 nm and 1310 nm) for laser lines separated by ≥10 GHz
  • High Laser Input power: 10dBm (18dBm - Safe Input level)
  • Advanced built-in measurement applications (Drift, OSNR, Data Logging, FP Laser Characterization)
  • Built-in HeNe laser wavelength standard
  • Wavelength display resolution: 0.0001 nm
  • Power display resolution: 0.01 dB
  • Units: dBm, mW, μW
  • Maximum displayed power level: +10 dBm
  • Maximum safe power input level: +18 dBm
  • Return loss with non-angled connectors (Option 021): 35 dB
  • Return loss with angled connectors (Option 022): 50 dB
  • Optical input: 9 μm/125 μm single-mode fiber
  • Rear panel connectors: LAN, PS/2 for keyboard and mouse, SVGA and DVI for external monitor, GPIB, USB, AC Line
