Showing Results for Tektronix DMM4040

1 results found for Tektronix dmm4040
Similar models:  Tektronix DMM4020  Tektronix DMM4050
Showing page 1 of about 1 pages total.
Here you will find a large selection of new and used Tektronix DMM4040 listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings by price. You also have the option of showing only ads that have been posted in the last 24 hours.

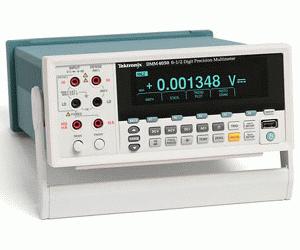

Tektronix DMM4040 (DMM4000 Series) Main Features and Specifications

Product Specs

  • Type Benchtop
  • Digits/Count 6½
  • Measurements DCV,ACV,Resistance,Continuity,Diode,DCA,ACA,Frequency,TRMS,2/4 Wire Resistance,Period
  • Vdc Low Range 100 mV
  • Vdc High Range 1 kV
  • Basic Vdc Accuracy 0.0035%
  • Status -
  • Launch Date Oct-2009

See also

With 6.5 digit resolution, the Tektronix DMM4050 and DMM4040 multimeters let you measure volts, ohms, and amps with a basic VDC accuracy of up to 0.0024% (DMM4050). Integrated frequency and period measurements mean you can make a wide range of measurements with one instrument. You can also monitor and record measurements over time or environmental ranges and view statistical values to see how the performance of your circuit is changing. And, dedicated front-panel buttons provide fast access to frequently used functions and parameters, reducing set-up time. The DMM4050/4040 multimeters provide the feature-rich tools and precision you need for your most demanding measurements.

  • Volts, Ohms, and Amps Measurements
  • Diode and Continuity Testing
  • Frequency and Period Measurements
  • 2×4 Ohms 4-wire Measurement Technique
  • TrendPlot™ Paperless Data Recorder Mode
  • Measurement Statistics
  • Histogram Mode
  • 6.5 Digit Resolution
  • 100 mV to 1000 V Voltage Range, with up to 100 nV Resolution
  • 100 μA to 10 A Current Range, with up to 100 pA Resolution
  • 10 Ω to 1 GΩ Ohm Range, with up to 10 μΩ Resolution
  • CAT I 1000 V, CAT II 600 V
  • Front and Rear 2×4 Measurement Inputs
  • USB Host Port on Front Panel for Easy Storage of Measurement Data and Instrument Settings
  • RS-232, LAN, and GPIB Ports on Rear Panel for Quick PC Connectivity
  • Includes USB to RS-232 Interface Adapter Cable
  • Includes the National Instrument LabVIEW SignalExpress™ TE Limited Edition for Connecting Your Bench
  • 3-Year Warranty
