Here you will find a large selection of new and used Tektronix DMM4020 listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings by price. You also have the option of showing only ads that have been posted in the last 24 hours.

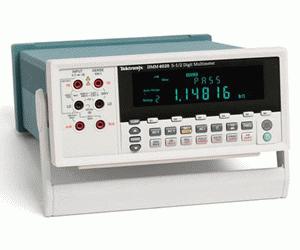

Tektronix DMM4020 (DMM4000 Series) Main Features and Specifications

Product Specs

  • Type Benchtop
  • Digits/Count 5½
  • Measurements DCV,ACV,Resistance,Continuity,Diode,DCA,ACA,Frequency,TRMS,2/4 Wire Resistance
  • Vdc Low Range 200 mV
  • Vdc High Range 1 kV
  • Basic Vdc Accuracy 0.015%
  • Status -
  • Launch Date Oct-2009

See also

With 5.5 digit resolution, the Tektronix DMM4020 multimeter lets you measure volts, ohms, and amps with a basic VDC accuracy of 0.015%. DC leakage current measurements and frequency measurements provide you with even more capability in the same instrument. And, dedicated front-panel buttons to access frequently used functions and to save your setups means measurements are just a button push away.

  • Volts, Ohms, and Amps Measurements
  • Diode and Continuity Testing
  • Frequency Measurements
  • 2×4 Ohms 4-wire Measurement Technique
  • Dedicated DC Leakage Current Measurements
  • Six Dedicated Buttons for Fast Access to Instrument Setups
  • Limit Compare Mode for Pass/Fail Testing
  • 5.5 Digit Resolution
  • Basic VDC Accuracy of up to 0.015% (1 year)
  • 200 mV to 1000 V Voltage Range, with up to 10 μV Resolution
  • 200 μA to 10 A Current Range, with up to 1 nA Resolution
  • 200 Ω to 100 MΩ Ohm Range, with up to 1 mΩ Resolution
  • CAT I 1000 V, CAT II 600 V
  • Front 2×4 Measurement Inputs
  • RS-232 on Rear Panel for Quick PC Connectivity
  • Includes USB to RS-232 Interface Adapter Cable
  • Includes the National Instrument LabVIEW SignalExpress™ TE Limited Edition for Connecting Your Bench
  • 3-Year Warranty
