Keysight Technologies (Agilent HP) 3466A () Main Features and Specifications

Product Specs

  • Status Discontinued
  • Alternative 34401A, 34411A, 34410A, L4411A

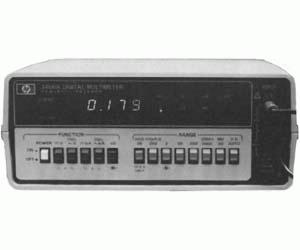

The HP 3466A is a 4.5 digit autoranging multimeter offering six measurements: ACV, DCV, ACI, DCI, ohms, and diode test. ACV and ACI are TRMS with selectable ac or dc coupling. Available with rechargeable batteries or ac power only, it features 1 µV and 1 mΩ sensitivity with zero adjustment on the lowest ranges to compensate for external offsets.

  • DC voltage range: 20 mV to 1200 V
  • DCV accuracy: 0.03%
  • TRMS AC voltage range: 200 mV to 1200 V
  • Crest factor: 4:1 at full scale
  • Resitance range: 20 Ω to 20 MΩ
  • Input protection (voltage): 250 V to 350 V (dc + peak ac)
  • DC current range: 200 µA to 2000 mA
  • AC current range: 200 µA to 2000 mA
  • Maximum input: Current: 2A (fused protected), voltage: 250 V
