Here you will find a large selection of new and used Advantest R6552 listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings by price. You also have the option of showing only ads that have been posted in the last 24 hours.

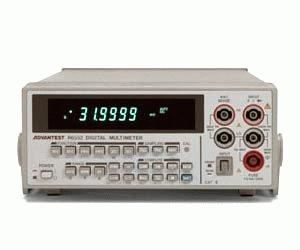

Advantest R6552 (R6552 Series) Main Features and Specifications

Product Specs

  • Status Discontinued

See also

The R6552 Series is a digital multimeter designed for system or bench use with the maximum display of 319999, featuring GPIB and RS232 interfaces with full remote control capability.
ADVANTEST''s unique multi-slope integral A/D conversion method ensures high speed and high precision measurements.
In addition to the FAST/MED/SLOW sampling modes of the conventional models, the R6552 has BURST and LONG-IT modes as well.

  • Maximum display : 319999
  • High sensitivity : DC voltage 0.1μV Resistance 100μΩ
  • Sampling rate : 1000/sec max. (BURST mode)
  • Extended integral time can be set (LONG-IT mode) in 10ms steps between 100ms and 60s for averaging repetitive signals.
  • It is capable of measuring AC+DC AC voltage and current
  • External trigger input, end-of-measurement signal output (standard)
  • NULL, smoothing, scaling, dB/dBm, comparator, and MAX/MIN operation capabilities
  • Data memory (1000 data max.)
  • Parameter backup (4 kinds)
  • High speed auto ranging for optimum setting of measurement ranges
  • Fluorescent display tube for enhanced viewing
