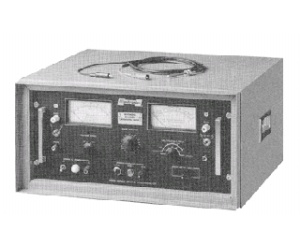

Hipotronics H306B (300 Series) Main Features and Specifications

Product Specs

  • Max. Output AC Voltage 5 kV
  • Output AC Current 5 mA
  • Max. Output DC Voltage 6 kV
  • Output DC Current 5 mA
  • Additional Measurements Dielectric withstand test,Insulation resistance
  • Status -

See also

The 300 Series AC/DC Hipot and Megohmmeter is an accurate bench type instrument designed to perform insulation tests on all types of electrical system components, assemblies and apparatus. They are designed for ac dielectric tests, dc dielectric tests and insulation resistance measurements with direct megohmmeter readings at 500 V dc output. These testers are popular in the laboratory environment due to the highly sensitive DC current meter and easily accessible front panel controls. They are also popular in production applications due to the rugged construction and ease of use.

  • Recessed, Locking High Voltage Connection
  • Interlock Provision
  • Over Current Protection
  • Gravity Operated Solenoid
  • Audible/Visual Alarms
  • Guard Circuit
  • Output Connected Voltmeter
  • Three Tests in One Unit - AC hipot, DC hipot and megohmmeter
  • Tests to many UL specifications as well as many CSA, VDE, IEC, MIL, IPC and other industry standards
  • Easily Accessible Front Panel Controls
  • 19" rack
  • NIST Traceability
  • Meters- 4.5 meter, +-2% full scale accuracy
  • Overload sensitivity - adjustable from 0.5mA to 5.5 mA
