Here you will find a large selection of new and used Keysight Technologies (Agilent HP) 4339B listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $6920 to $2795 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

Keysight Technologies (Agilent HP) 4339B () Main Features and Specifications

Product Specs

  • Status -

See also

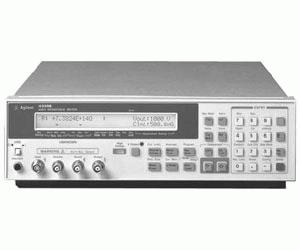

The 4339B high-resistance meter is the most advanced tool from Agilent Technologies for making precision high-resistance measurements. The test sequence program function provides an automatic measurement process (charge-measure-discharge). A variety of test fixtures for component and material measurements are available.

  • Great solution for evaluating leakage current and insulation resistance of components
  • Can be programmed to measure surface and volume resistivity
  • Wide measurement range
    • R: 1 kΩ to 1.6 x 1016 Ω
    • I: 60 fA to 100 μA
  • Test voltage: 0.1 to 1000 Vdc
  • High-speed measurement: 10 ms
  • Contact check function for reliable tests
  • Select from four test parameters
  • Remove parasitics with error correction
  • Consistent data with 0.6% basic accuracy
  • Compensation for handler contact chattering with trigger delay
  • Stable test fixtures: resistivity cell, component test fixture
  • Test sequence programming
  • Resistivity calculations
  • Grounded DUT measurement
  • Save and recall up to ten measurement setups
  • Backlit LCD
  • Selectable number of display digits (3, 4 and 5 digits)
  • Time count-down display mode in measurement sequence function
  • Test current monitor display function

Get Price Quotes

4339B Agilent High Resistance Meter
  • $2,795
    • In Stock
