Here you will find a large selection of new and used GW Instek LCR-8105G listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings by price. You also have the option of showing only ads that have been posted in the last 24 hours.

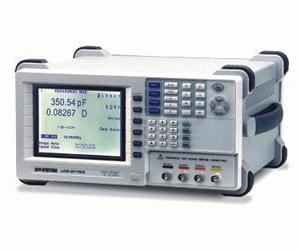

GW Instek LCR-8105G (LCR-8000G Series) Main Features and Specifications

Product Specs

  • Test Freq. Range Low 20Hz
  • Test Freq. Range High 5 MHz
  • Resistance Range Low 100 µOhm
  • Resistance Range High 100 MOhm
  • Capacitance Range Low F
  • Capacitance Range High 1F
  • Measurements Z,Rac,L,C,Q,D,Phase,Rdc,R,X,G,B,Y
  • Status -

See also

The LCR-8000G Series LCR meter, with test frequencies up to 10MHz, provides accuracy, versatility, and high resolution for a wide range of component measurements, including DC resistance measurement and Voltage/Current monitoring.

The Multi-Step function allows on-screen programming of customized measurement sequence with Pass/Fail indication. Each program includes 30 test steps, and each test step can be set with selected parameters and test limits. Under Multi-Step operation, a tedious work routine can be processed step-by-step automatically with a simple press of a button.

In Graph Mode, the LCR-8110G, LCR-8105G, and LCR-8101G display the component impedance response in a graph chart, either over a wide range of test frequency sweeps or over a wide range of test voltage sweeps. This produces an analysis, which can be accessed with one quick glance, of either impedance vs frequency or impedance vs applied voltage.

GPIB and RS-232C interfaces are available as standard.

  • Test Frequency 20Hz ~ 5MHz
  • Large LCD Display
  • 6 digit Measurement Resolution
  • 0.1% Basic Measurement Accuracy
  • Multiple Step Mode
  • DC Resistance Measurement
  • Comprehensive Measurement Functions
  • Monitoring of DUT Voltage and Current
  • Pass/Fail Test
  • Standard Interface : RS-232 & GPIB
  • Graph Mode
