Fluke PM 6304/00n (RCL Meters) Main Features and Specifications

Product Specs

  • Test Freq. Range Low 50Hz
  • Test Freq. Range High 100 kHz
  • Resistance Range Low 100 µOhm
  • Resistance Range High 200 MOhm
  • Capacitance Range Low F
  • Capacitance Range High 31.8F
  • Measurements Z,Rac,L,C,Q,D,Phase,Rdc
  • Status -

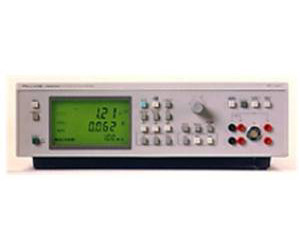

If you want an instrument with remote programmability, consider the Fluke PM 6304 RCL meter. The PM 6304 has a basic accuracy of 0.1%, 3 test voltage levels and 204 test frequencies. The PM 6304C has an even higher basic accuracy, and can measure components or devices with an accuracy of 0.05%. Thanks to this high accuracy, the PM 6304C is idealy suited for calibrating the capacitance sourcing function of the high-performance Fluke 5500A Multi-Product Calibrator.

  • Select the test you need
  • Easy-to-use, at-a-glance display
  • Test frequencies from 50 Hz to 1 MHz (100 kHz for PM 6304)
  • 0.1% basic accuracy (0.05% for PM 6304C)
  • RS-232 or IEEE-488 interface
  • AC test levels from 50 mV to 2V rms
  • Internal or external bias
  • DC test measurement (optional)
  • 9 front panel setups
  • Actual component test voltage/current readback
  • Automatic zero trimming
  • Contact check and deviation mode (PM 6306 only)
  • Front-panel test posts for immediate 4-wire measurements
