Showing Results for Keysight Technologies (Agilent HP) U1732C

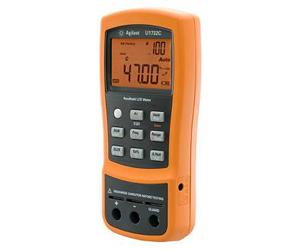

The Agilent U1730C Series handheld LCR meters lets you measure at frequencies as high as 100 kHz—a capability typically found only in benchtop meters. Get measurements done faster using the one-touch automatic identification function button, which displays component type and more detailed component analysis such as Z, ESR, and DCR. Ideal for testing on the go, these LCR meters operate on a battery that lasts up to 16 hours. With the U1730C Series, which has been built for your convenience, you can perform quick and basic LCR measurements at an affordable price.

• 20,000 counts resolution
• 0.2% basic accuracy
• Wide LCR ranges with three to five selectable test frequencies (up to 100 kHz for U1733C)
• Auto identification (Ai) automatically determines and displays component type and measurements
• Detailed component analysis with DCR, ESR, Z, D, Q, and θ functions
• Battery life of 16 hours / AC-powered
• IR-to-USB connectivity for data logging to PC
• Impedance/resistance range: 2 Ω, 20 Ω, 200 Ω, 2000 Ω, 20 kΩ, 200 kΩ, 2000 kΩ, 20 MΩ, 200 MΩ. Resolution at 2 Ω: 0.0001 Ω. Resolution at 200 kΩ: 0.01 kΩ. Resolution at 200 M Ω: 0.01 MΩ
• Capacitance range: 20 mF, 2000 µF, 200 µF, 20 µF, 2000 nF, 200 nF, 20 nF, 2000 pF, 200 pF, 20 pF. Resolution at 20 mF: 0.001 mF. Resolution at 200 nF: 0.01 nF. Resolution at 20 pF: 0.001 pF
• Inductance range: 20 µH, 200 µH, 2000 µH, 20 mH, 200 mH, 2000 mH, 20 H, 200 H, 2000 H. Resolution at 20 µH: 0.001 µH. Resolution at 200 mH: 0.01 mH. Resolution at 2000 H: 0.1 H
