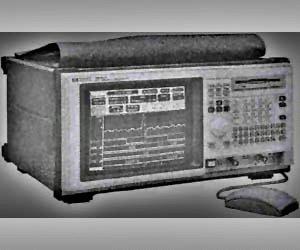

Keysight Technologies (Agilent HP) 1663AS () Main Features and Specifications

Product Specs

  • Status Discontinued
  • Alternative 16800 Series Portable Logic Analyzer

See also

The HP 1660A Series are 100-MHz State/500-MHz Timing Logic Analyzers. They help you rapidly troubleshoot elusive hardware failures, verify proper bus operation, and debug software during real-time execution. Choose a model with 34, 68, 102 or 136 logic analyzer channels. They all have enough timing and state analysis speed to handle even high-performance applications. The 1660 AS series of logic analyzers combine timing and state analysis with the ability to show signal parametrics by including a built-in 2-channel oscilloscope.

  • 34 logic analyzer channels in the HP 1663AS
  • Maximum State Speed: 100 MHz
  • Minimum State Clock Pulse Width: 3.5 ns
  • Minimum Master to Master Clock Time: 10.0 ns
  • Minimum Glitch Width: 3.5 ns
  • Maximum Conventional Timing Rate: 250 MHz full channel, 500 MHz half channel
  • Maximum Transitional Timing Rate: 125 MHz full channel, 250 MHz half channel
  • Maximum Timing with Glitch Rate: 125 MHz half channel
  • Threshold Accuracy: ± (100 mV + 3% of threshold setting)
  • Setup/Hold Time:
    • Single Clock, Single Edge 0.0/3.5 ns through 3.5/0.0 ns, adjustable in 500-ps increments
    • Single Clock, Multiple Edges 0.0/4.0 ns through 4.0/0.0 ns, adjustable in 500-ps increments
    • Multiple Clocks, Multiple Edges 0.0/4.5 ns through 4.5/0.0 ns, adjustable in 500-ps increments
  • Lightweight, passive probes for easy hookup and compatibility with previous Agilent logic analyzers and preprocessors
  • Compare, chart, and waveform displays
  • 3.5-inch disk drive
  • HP-IB and RS-232C interface
  • 4 kbytes deep memory on all channels with 8 kbytes in half channel mode
  • Marker measurements: Time Interval, Delta States, Patterns, Statistics functions
  • 12 levels of trigger sequencing for state and 10 levels of sequential triggering for timing
  • 100 MHz time and number-of-states tagging
  • Full programmability
  • Oscilloscope
    • Channels: 2
    • Maximum sample rate: 1 GSa/s per channel
    • Bandwidth: dc to 250 MHz (dc coupled)
    • Rise time: 1.4 ns
    • Vertical resolution: 8 bits
    • Memory depth per channel: 8k samples
