Showing Results for Keysight Technologies (Agilent HP) U4154A

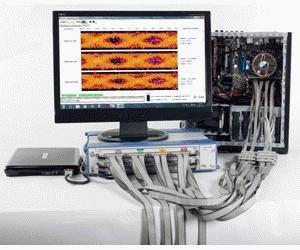

The Agilent U4154A AXIe-based logic analyzer module provides reliable measurements on high-speed digital systems operating up to 4 Gb/s with eye openings as small as 100 ps by 100 mV. 12.5 GHz Timing Zoom with 256K sample memory gives you simultaneous state and high-resolution timing measurements covering a time span of 20 µs. Eye scan provides an overview of signal integrity information on all channels in a matter of minutes. 200 M samples of available memory ensure you capture enough system activity to troubleshoot complex systems.

• State analysis (synchronous sampling)
  • Data rates up to 4 Gb/s address all DDR memory speeds
  • Automated threshold/sample position setup for accurate measurements on high-speed buses; thresholds are adjustable on a per-channel basis
  • Reliable measurements with eye openings as small as 100 ps by 100 mV
  • Simultaneous eye diagrams on all channels identify problem signals quickly
• Timing analysis (asynchronous sampling)
  • Up to 200 ps (5 GHz), 400 M sample deep conventional timing analysis (2.5 GHz full-channel / 5 GHz half-channel)
  • 2.5 GHz transitional timing
  • 12.5 GHz (80 ps) TimingZoom with 256 K memory
• 136 channels per module, combine up to 2 modules for 272 channels on a single time base and trigger recognizer
• Optional memory depths: 2M, 4 M, 16 M, 32 M, 64 M, 128 M, 200 M
• Compatible with 90-pin logic analyzer probes (probes ordered separately)
• Can be combined with 16902B logic analyzer mainframes in a Multiframe configuration
• 2.5 GHz trigger sequencer enables reliable trigger and capture of DDR3 2133 signals at speed
• Comprehensive single-ended and differential signal support, adjustable threshold

Specifications:

• State (synchronous) sampling mode
  • Maximum state data rate: 2.5 Gb/s on 136 channels per U4145A, using either or both edges of clock; 4 Gb/s on 68 channels per U4165A, using both edges of clock
  • Typical maximum state clock frequency: 2.5 GHz
  • Typical minimum state clock frequency: 12.5 MHz - single edge, 6.25 MHz - both edges
  • Typical sample position adjustment resolution: 5 ps
  • Typical minimum data valid window: 100 ps
  • Typical minimum setup time: 50 ps
  • Typical minimum hold time: 50 ps
  • Typical minimum eye height: 100 mV
  • Typical sample position adjustment range: 7 ns
  • Typical minimum state clock pulse width: 200 ps
  • Nominal number of clocks: 1
  • Typical minimum time between active clock edges: 400 ps
  • Typical maximum time between active clock edges: 80 ns
  • Nominal number of clock qualifiers: 4
  • Typical clock qualifier setup time: 100 ps
  • Typical clock qualifier hold time: 100 ps
  • Typical time tag resolution: 80 ps
  • Typical maximum time count between stored states: 66 days
• Timing (asynchronous) sampling mode
  • Nominal maximum sample rate: 5 GHz in half-channel mode, 2.5 GHz in full-channel mode
  • Nominal minimum sample period: 200 ps in half-channel mode, 400 ps in full-channel mode
  • Number of channels: One U4154A - 68 in half-channel mode, 136 in full-channel mode; Two U4154As - 136 in half-channel mode, 272 in full-channel mode
  • Nominal pod usage: 1 pod from each odd/even pair, user selectable in half-channel mode, all pods in full-channel mode
  • Nominal TimingZoom sampling rate: 12.5 GHz
  • Nominal TimingZoom memory depth: 256 Ksamples
  • Nominal maximum time between transitions: 66 days
  • Typical minimum data pulse width: 1 sample period + 200 ps
• Triggering
  • Typical maximum trigger sequence speed: 2500 MHz (400 ps)
  • Nominal trigger resources: 16 patterns evaluated as =, !=, >, ≥, <, ≤; 8 double-bounded ranges evaluated as in range, not in range; 4 to 8 burst detectors; 4 edge detectors in timing, 3 in transitional timing; 1 occurrence counter per sequence level; 1 timer; 3 flags; 1 arm in
  • Nominal trigger resource Boolean conditions: Arbitrary Boolean combinations
  • Nominal trigger actions: Goto; Trigger and fill memory; Trigger and Goto; Trigger, send email, and fill memory
  • Timer actions: Start from reset, Stop and reset, Pause, Resume
  • Flag actions: Set, Clear, Pulse set, Pulse clear
  • Nominal maximum trigger sequence levels; 8
  • Nominal trigger sequence level branching: Arbitrary 4-way if/then/else
  • Nominal trigger position: Start, center, end, or user-defined
  • Nominal maximum occurrence counter: 999,999,999
  • Nominal maximum pattern width: 128 bits - single label; 272 bits - AND of multiple labels across two-card set
  • Nominal maximum range width: 64 bits
  • Nominal timer range: 100 ns to 27 hours in timing modes; 200 * state clock period to 27 hours in state mode
  • Nominal timer resolution: 5 ns
  • Nominal timer reset latency: 40 ns in timing modes; 80 * state clock period in state mode
