Showing Results for Keysight Technologies (Agilent HP) 16532A

6 results found for Agilent hp 16532a
Showing page 1 of about 1 pages total.
Here you will find a large selection of new and used Keysight Technologies (Agilent HP) 16532A listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $395 to $282 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

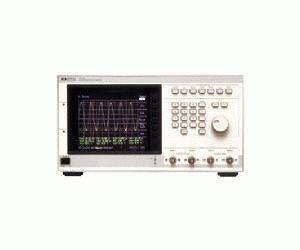

Keysight Technologies (Agilent HP) 16532A (Digitizing Oscilloscope Acquisition Card) Main Features and Specifications

Product Specs

  • Bandwidth 250 MHz
  • Channels 2
  • Sample Rate 1 GSa/sec
  • Memory Depth 8000 samples/ch
  • Status Discontinued
  • Supported until May-2001
  • Alternative 16900 Series Modular Logic Analysis System

The 16532A Oscilloscope is a 1 GSa/s digitizing oscilloscope.

  • 1 GSa/s digitizing for 250 MHz bandwidth single shot analysis
  • 8000 samples per channel
  • Automatic pulse parameters, displays time between  markers, acquires until specified time between markers is captured, performs statistical analysis on time between markers
  • Lightweight miniprobes
  • 2-channel simultaneous acquisition
  • Bandwidth :dc to 250 MHz (real time, dc-coupled)
  • Maximum Sample Rate: 1 Gigasample per second
  • Number of Channels: 2, 4, 6, 8 simultaneous channels using the same time base setting(s)
    OR
    Up to 10 channels with independent time bases for each pair of channels.
    Up to 18 channels with the HP 16501A Expansion Frame
  • Rise Time(2): 1.4 ns
  • ADC: 8-bit real time
