Keysight Technologies (Agilent HP) 8168F () Main Features and Specifications

Product Specs

  • Status Discontinued

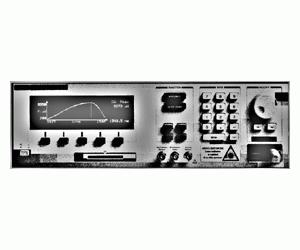

The HP 8168F is a 1550nm, +7Bm, tunable laser source. It is equipped with a built-in sidemode filter to ensure true single-mode operation over the full wavelength range. Output power and wavelength are selectable independent from each other. Wavelength scans, which require an output power that is stable over time and flat across all wavelengths, can be performed reliably, accurately, and quickly.

  • Wavelength range: 1450 nm to 1590 nm
  • Absolute wavelength accuracy (typical): ±0.1 nm
  • Relative wavelength accuracy: ±0.035 typical, ±0.001 nm
  • Wavelength resolution: 0.001 nm, 125 MHz at 1550 nm
  • Wavelength stability: <±100 MHz
  • Wavelength repeatibility: ±0.035 typical, ±0.001 nm
  • Linewidth
    • Typical: 100 kHz
    • Broadened (effective, typical): 50 ‑ 500 MHz
  • Signal to source spontaneous emission ratio: >45 dB/1 nm
  • Signal suppression ratio: >50 dB
  • Output power
    • +8 dBm peak (typical)
    • >+7 dBm (1520 - 1570 nm)
    • >1 dBm (1475 - 1575 nm)
    • >-7 dBm (1450 - 1590 nm)
  • Minimum output power: -7 dBm
  • Power linearity: ±0.1 dBm
  • Power repeatability (typical): ±0.04 dB
  • Power flatness versus wavelength
    • ±0.1 dB (1475 - 1575 nm)
    • ±0.2 dB (1450 - 1590 nm)
    • ±0.2 dB (1475 - 1575 nm)
    • ±0.3 dB (1450 - 1590 nm)
  • Output isolation (typical): 50 dB
  • Return loss (typical): 60 dB
  • Internal modulation
    • Frequency (square wave): 250 Hz to 300 kHz
    • Duty cycle: 50% fixed
    • Modulation depth; 100% (on/off)
    • Modulation output: TTL reference signal—maximum power reduced by 1 dB
  • External modulation
    • Frequency: 200 kHz to 20 MHz (at 3 dB optical bandwidth, typical)
    • Depth: ±15% (maximum, typical)
  • HP-IB interface function code: SH1, AH1, T6, L4, SR1, RL1, PP0, DC2, DT0, C0
  • Memory cards: Files and data can be stored on memory cards according to PCMCIA type 1, standard PCMCIA 1.0/JEIDA 4.0. Type 1 cards are 3.3 mm thick
  • Laser class: Class IIIb according to FDA 21 CFR 1040.10. Class 3A according to IEC 825 1 (1993)
